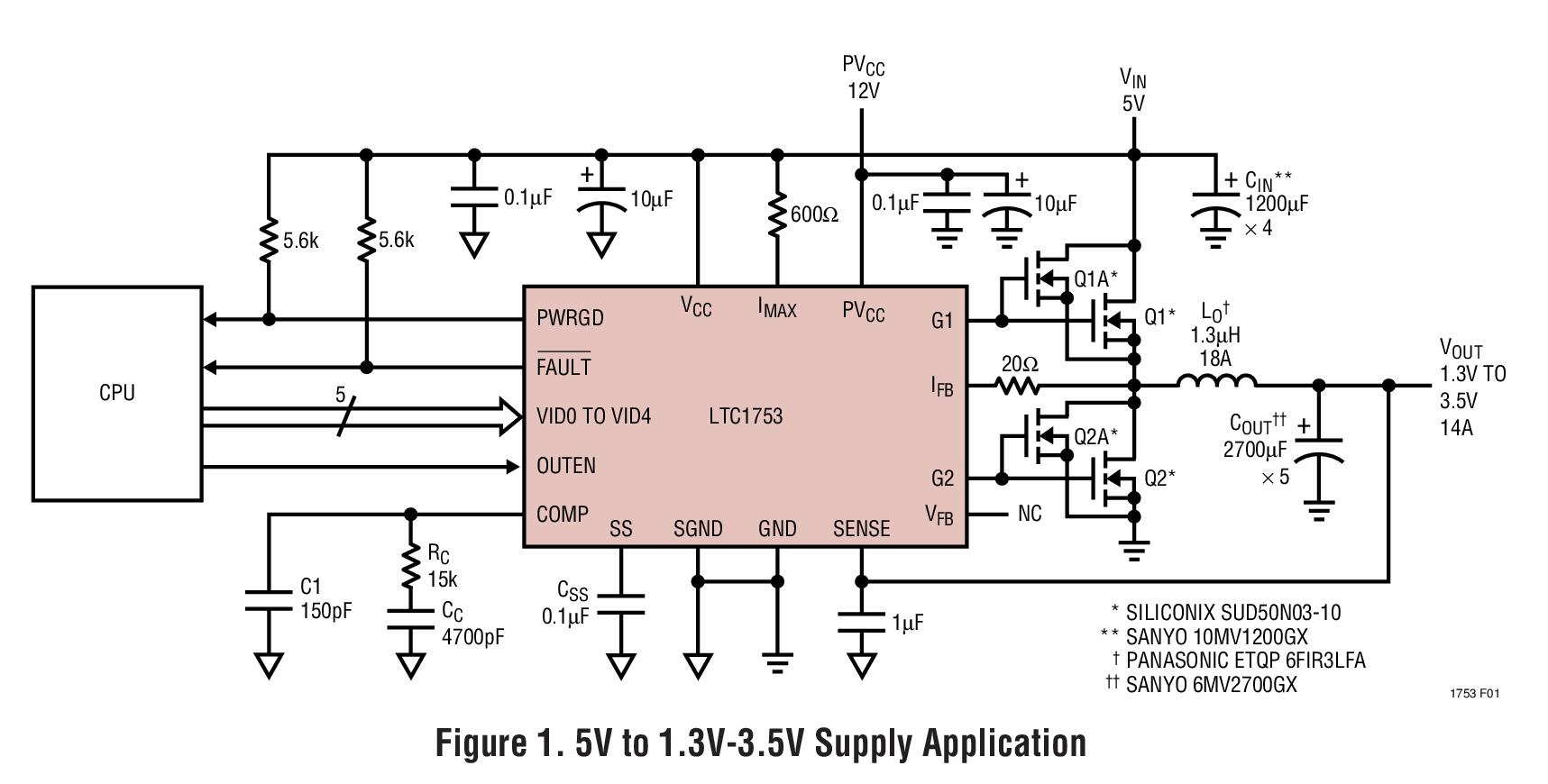

Typical Application for LTC1753 - 5-Bit Programmable Synchronous Switching Regulator Controller for Pentium II Processor

Reference Design using part LTC1753 by Analog Devices

Enlarge
Image 1 / 1

Manufacturer

Analog Devices
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • DC to DC Power Supply
  • DSP, ASIC & FPGA Power Supply

Description

  • Typical Application for LTC1753 - 5-Bit Programmable Synchronous Switching Regulator Controller for Pentium II Processor. The LTC 1753 is a high power, high efficiency switching regulator controller optimized for 5V input to a digitally programmable 1.3V-3.5V output

Key Features

  • Conversion Type
    DC to DC

Featured Parts (7)

Featured Parts
Part Number Manufacturer Type Description
LTC1753CSW#TRPBF Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SOIC W T/R Buy
LTC1753CSW Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SOIC W Buy
LTC1753CG#PBF Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SSOP Tube Buy
LTC1753CG#TRPBF Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SSOP T/R Buy
LTC1753CSW#PBF Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SOIC W Tube Buy
LTC1753CG Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SSOP Buy
LTC1753CSW#TR Analog Devices DC to DC Controllers DC/DC Cntrlr Single-OUT Step Down 350kHz 20-Pin SOIC W T/R Buy
