MSP-FET430, MSP430 MCU Development System

Reference Design using part MSP430F112 by Texas Instruments

Enlarge

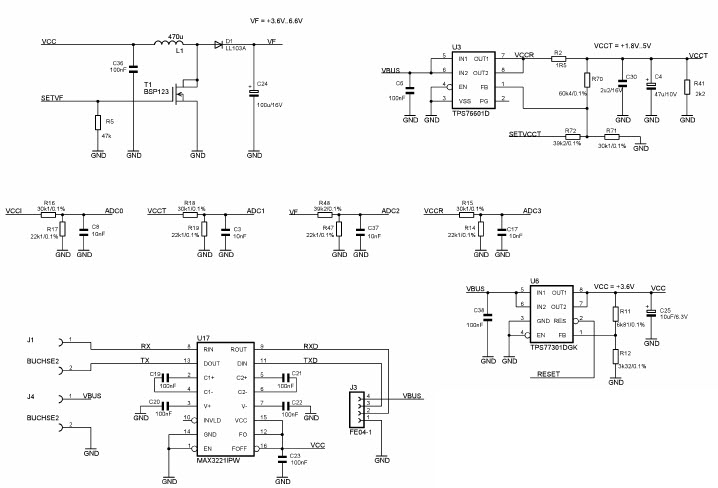

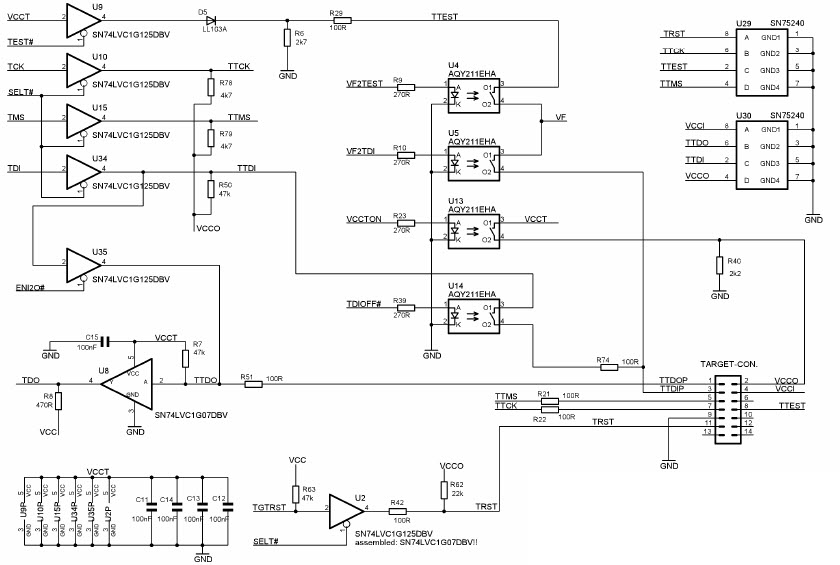

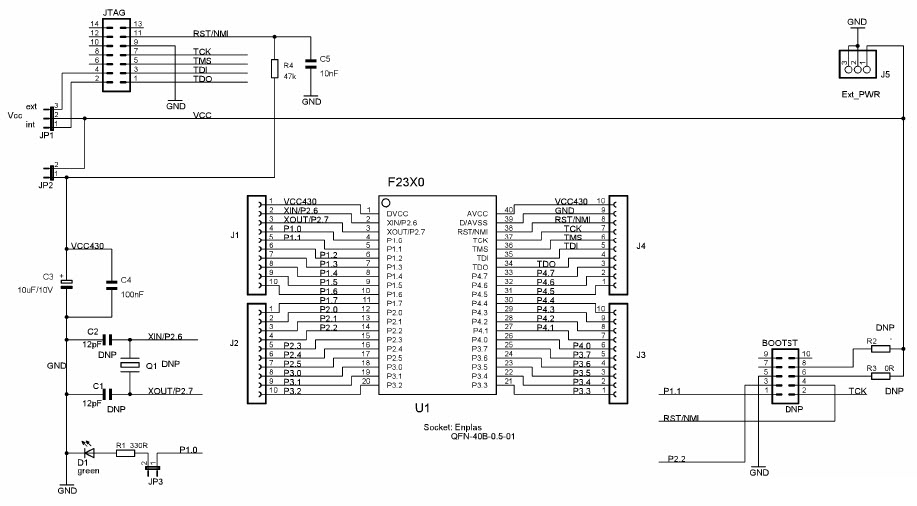

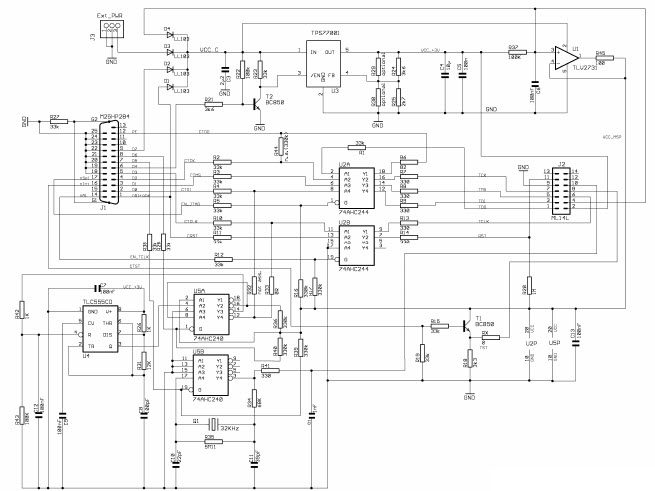

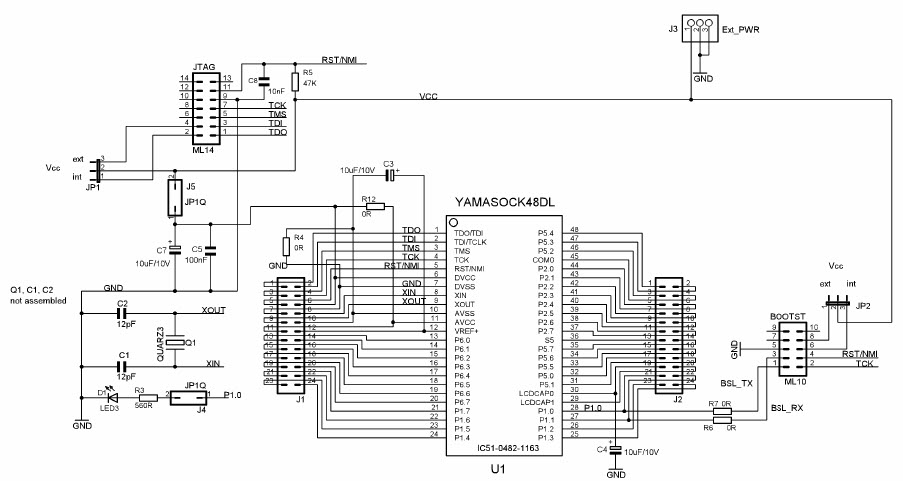

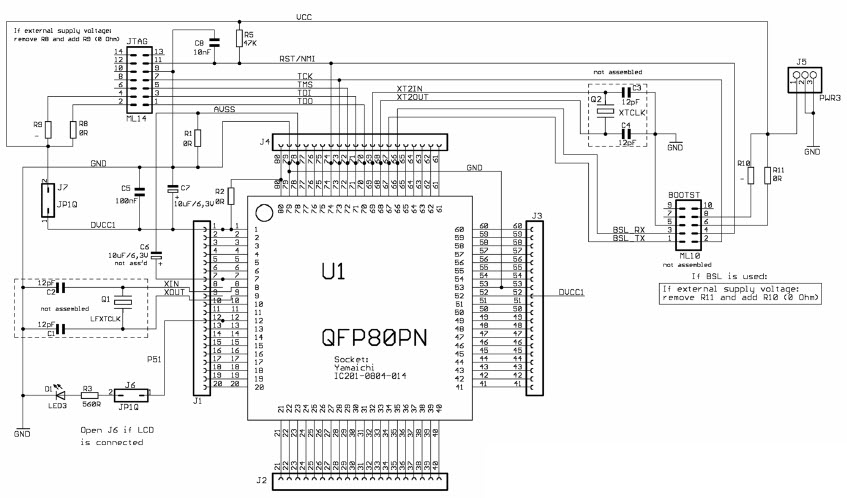

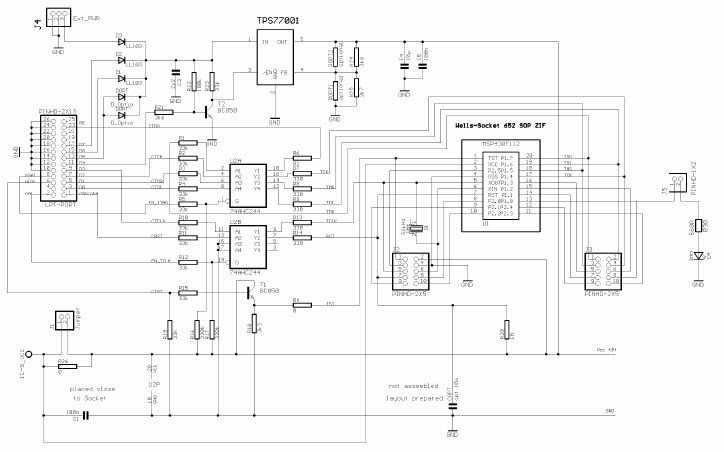

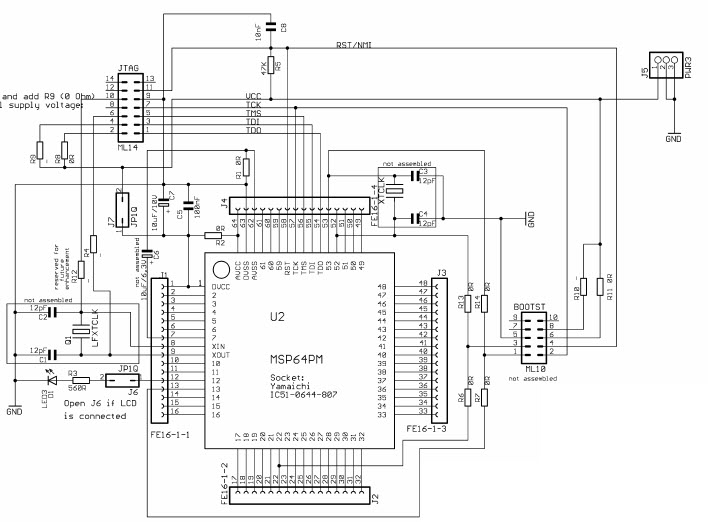

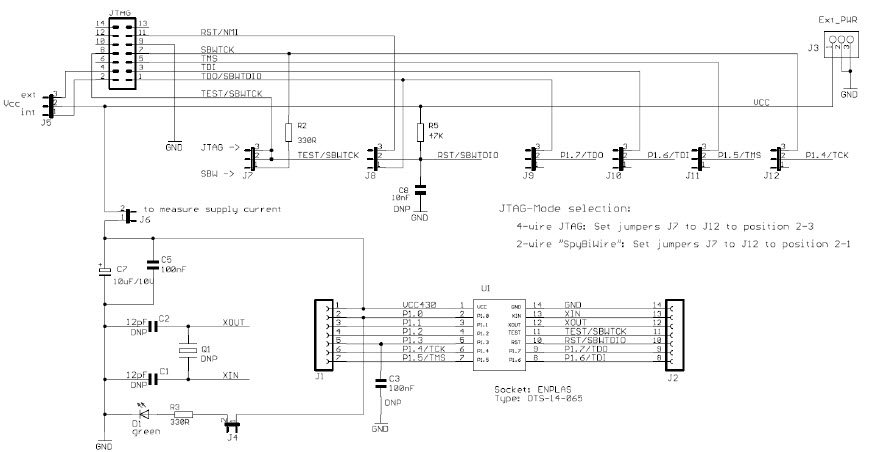

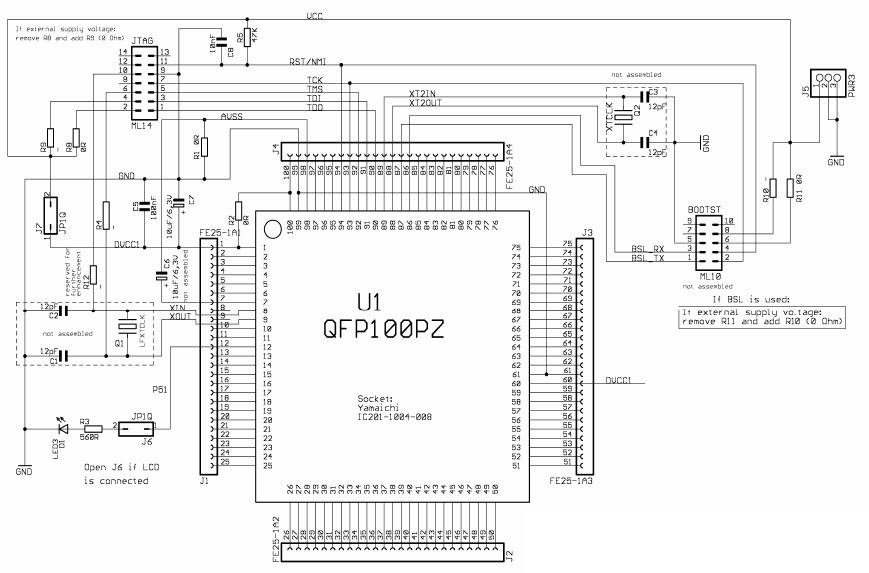

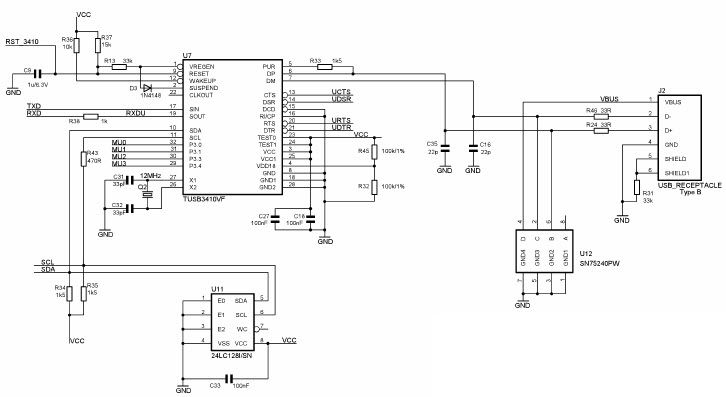

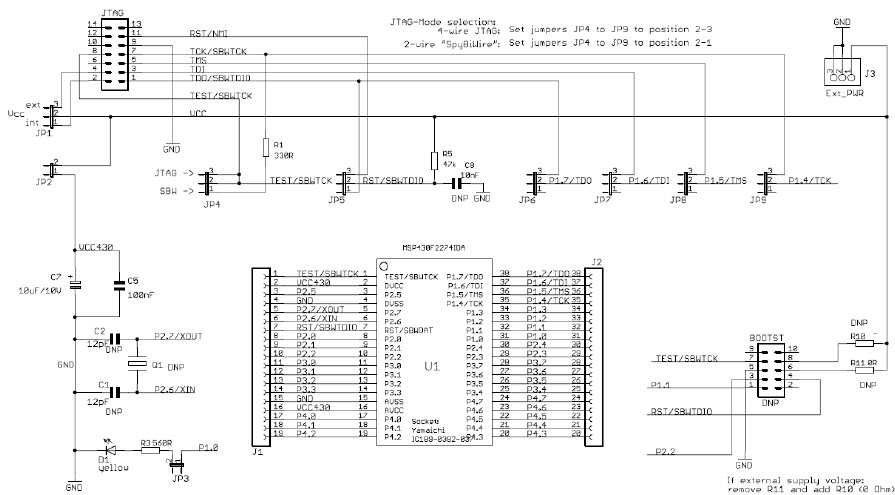

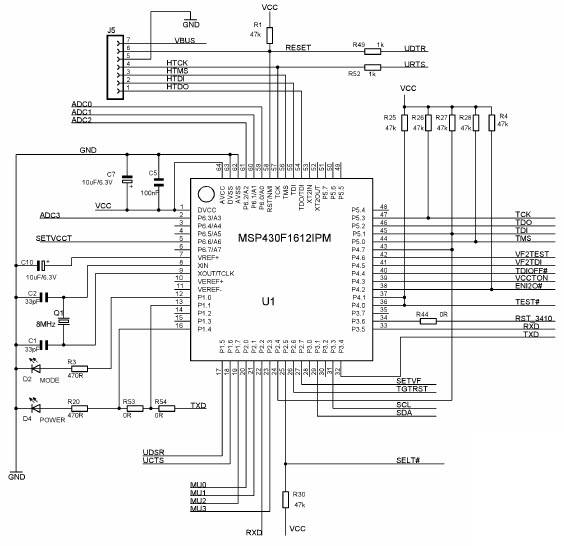

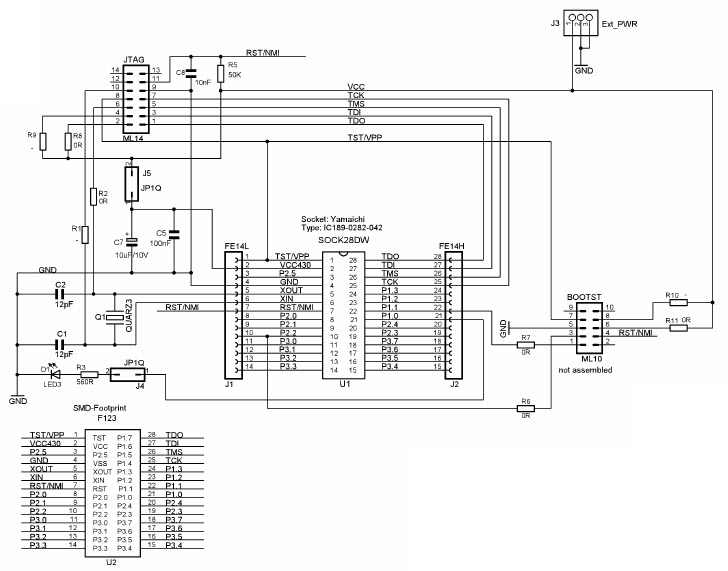

MSP-FET430 FLASH Emulation Tool (Sheet 1 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 2 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 3 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 4 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 5 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 6 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 7 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 8 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 9 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 10 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 11 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 12 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 13 of 14)
MSP-FET430 FLASH Emulation Tool (Sheet 14 of 14)
Image 1 / 14

Manufacturer

Texas Instruments
  • Application Category
    Embedded System
  • Product Type
    Microcontroller

Associated Documents

For End Products

  • Industrial

Description

  • MSP-FET430, MSP430 MCU Development System. The FET is the development tool for the MSP430 ultra low power microcontroller

Key Features

  • Embedded System Type
    MCU
  • Family Name
    MSP430

Featured Parts (4)

Featured Parts
Part Number Manufacturer Type Description
TPS77001DBVRG4 Texas Instruments Linear Regulators LDO Regulator Pos 1.2V to 5.5V 0.05A 5-Pin SOT-23 T/R Buy
TPS77001DBVTG4 Texas Instruments Linear Regulators LDO Regulator Pos 1.2V to 5.5V 0.05A 5-Pin SOT-23 T/R Buy
TPS77001DBVR Texas Instruments Linear Regulators LDO Regulator Pos 1.2V to 5.5V 0.1A 5-Pin SOT-23 T/R Buy
MSP430F112IPW Texas Instruments Microcontrollers - MCUs MCU 16-bit MSP430 RISC 4KB Flash 2.5V/3.3V 20-Pin TSSOP Tube Buy
