FRDM-KW019032, Freedom Development Board for Kinetis KW0x MCUs

Reference Design using part MKW01Z128CHN by NXP Semiconductors

Enlarge

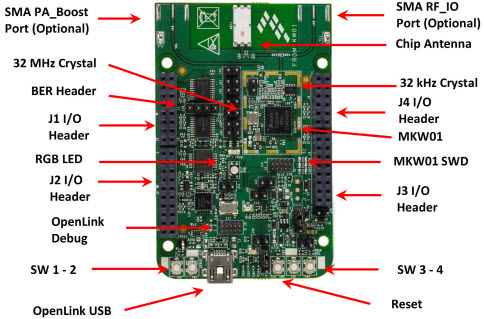

FRDM-KW019032 Image (Sheet 1 of 6)
FRDM-KW019032 Specification (Sheet 2 of 6)

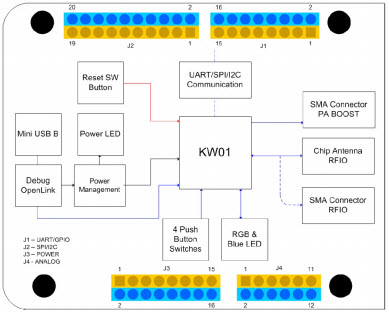

FRDM-KW019032 Block Diagram (Sheet 3 of 6)

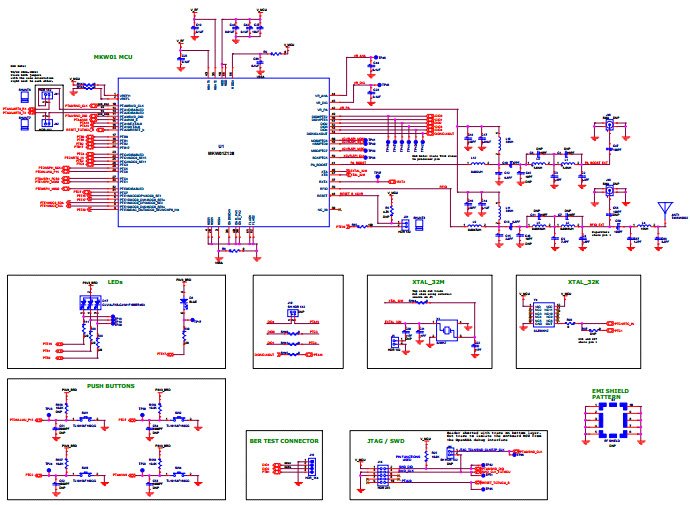

FRDM-KW019032 Schematic (Sheet 4 of 6)

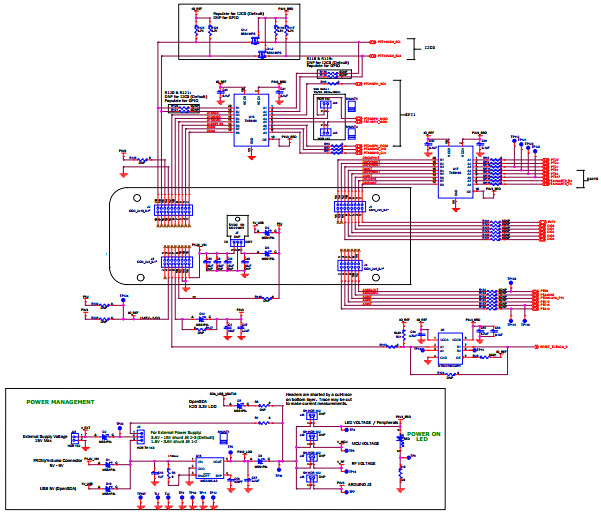

FRDM-KW019032 Schematic (Sheet 5 of 6)
FRDM-KW019032 Schematic (Sheet 6 of 6)
Image 1 / 6

Manufacturer

NXP Semiconductors
  • Application Category
    Embedded System
  • Product Type
    Microcontroller
Buy

Associated Documents

For End Products

  • Networking
  • Wireless

Description

  • FRDM-KW019032, Development Platform based on the MKW01Z128CHN Kinetis W Series microcontroller, and is enabled by software support for 802.15.4 MAC/PHY, SMAC and Kinetis Software Development Kit (SDK). The FRDM-KW019032 kit contains two boards, enabling point-to-point out of the box connectivity. Powered by the ultra-low-power 48 MHz ARM Cortex-M0+ 32-bit core, the Kinetis KW0x family of MCUs embeds a rich set of peripherals such as a high-performance, bi-directional sub-1 GHz radio capable of operating over a wide frequency range of 315, 433, 470, 868, 915, 928 and 960 MHz in the license-free industrial, scientific and medical frequency bands. FRDM-KW019032 evaluation boards are designed to work either in standalone mode or as part of the Freedom development platforms for quick application prototyping

Key Features

  • Embedded System Type
    MCU
  • Family Name
    Kinetis KW0x
  • Core Processor
    ARM Cortex-M0+
  • Platform
    Freedom Development

Featured Parts (7)

Featured Parts
Part Number Manufacturer Type Description
MK20DX128VFM5 NXP Semiconductors Microcontrollers - MCUs MCU 32-bit ARM Cortex M4 RISC 128KB Flash 1.8V/2.5V/3.3V 32-Pin QFN EP Tray Buy
NTSX2102GU8H NXP Semiconductors Level Translators Voltage Level Translator 2-CH Bidirectional 8-Pin XQFN T/R Buy
ABM3B-8.000MHZ-B2-T Abracon Crystals Crystal 8MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 200Ohm 4-Pin CSMD T/R Buy
MIC2005-0.8YM6 Microchip Technology USB Power Switches Power Switch Hi Side 1-OUT 0A 70mOhm 6-Pin SOT-23 Buy
MIC5205-3.3YM5 Microchip Technology Linear Regulators LDO Regulator Pos 3.3V 0.15A 5-Pin SOT-23 Buy
NXP NXP Semiconductors Level Translators Voltage Level Translator 2-CH Bidirectional 8-Pin XQFN T/R Buy
TXB0108PWR Texas Instruments Level Translators Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R Buy
