DC to DC Single Output Power Supply for Wireless LAN

Reference Design using part LP5904 by Texas Instruments

Enlarge

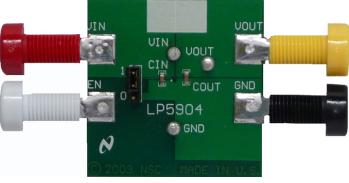

LP5904TM-2.85EV Image

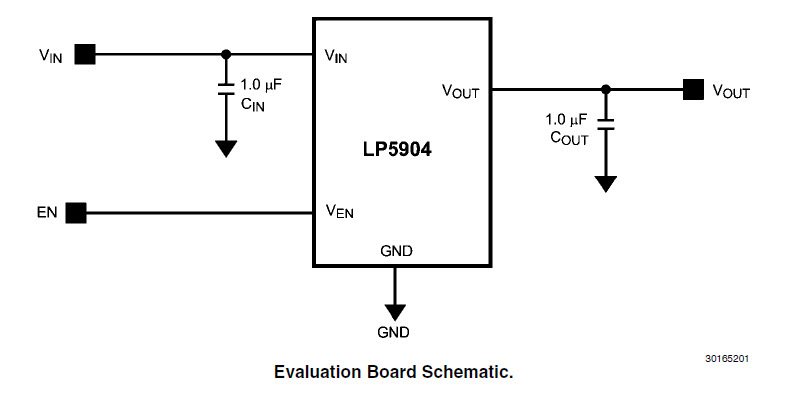

LP5904TM-2.85EV Schematic
Image 1 / 2

Manufacturer

Texas Instruments
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies

For End Products

  • Cellular Phone
  • Personal Digital Assistant
  • Wireless LAN

Description

  • LP5904 is a linear regulator capable of supplying 200 mA output current. Designed to meet requirements of RF/ Analog circuits, LP5904 provides low device noise, high PSRR, low quiescent current and low line transient response

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    2.2 to 5.5 V
  • Output Current
    0.2 A
