ANT4-M24LR-A, 2 x 64 Kbit Multibank Antenna Reference Design Board for the M24LR64-R Dual Interface EEPROM

Reference Design using part M24LR64-R by STMicroelectronics

Enlarge
ANT4-M24LR-A Image

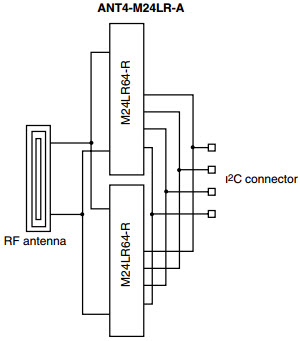

ANT4-M24LR-A Block Diagram
Image 1 / 2

Manufacturer

STMicroelectronics
  • Application Category
    Wireless Communication
  • Product Type
    Wireless Systems

Associated Documents

For End Products

  • Wireless Telecommunications

Description

  • ANT4-M24LR-A, 2 x 64 Kbit Multibank Antenna Reference Design Board ready-to-use PCB that features two M24LR64-R Dual Interface EEPROM ICs connected to a 45 mm x 75 mm 13.56 MHz etched RF antenna on one side and to an I2C bus on the other side. The ANT4-M24LR-A allows system designers to evaluate the M24LR64-R IC in multibank configuration since the board is seen as a 128-Kbit memory split into 2 banks of equal size

Key Features

  • Operating Frequency
    13.56 MHz

Featured Parts (1)

Featured Parts
Part Number Manufacturer Type Description
M24LR64-RS185/2 STMicroelectronics NFC/RFID Tags and Transponders NFC/RFID Tag and Transponder IC 13553kHz to 13567kHz 64Kbit Wafer Buy
