AKD4665A-A, Evaluation Board for AK4665A 20bit Audio CODEC with built-in Input PGA and HeadPhone Amplifier

Reference Design using part AK4114VQ by Asahi Kasei Microdevices Corporation

Enlarge
AKD4665A-A Block Diagram (Sheet 1 of 5)

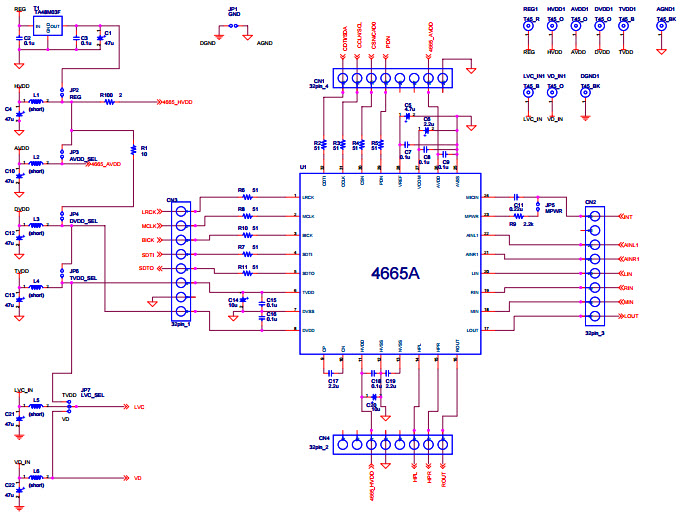

AK4665A (Sheet 2 of 5)

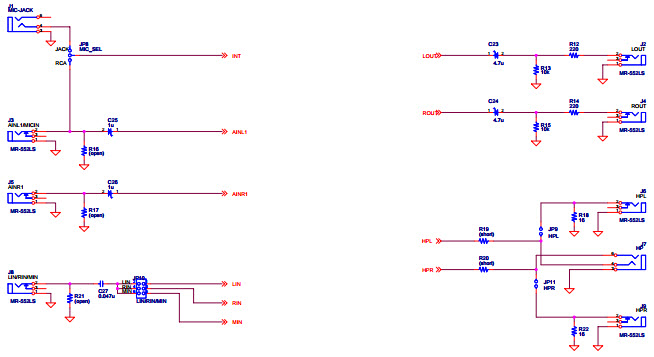

ANALOG (Sheet 3 of 5)

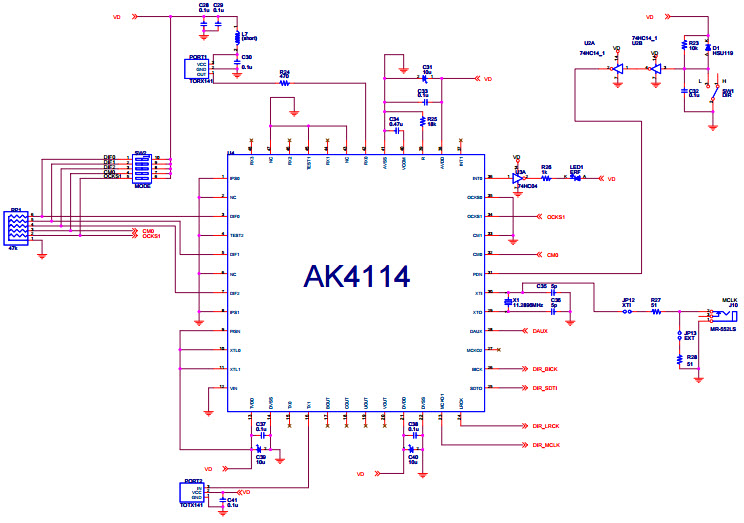

DIR/DIT (Sheet 4 of 5)

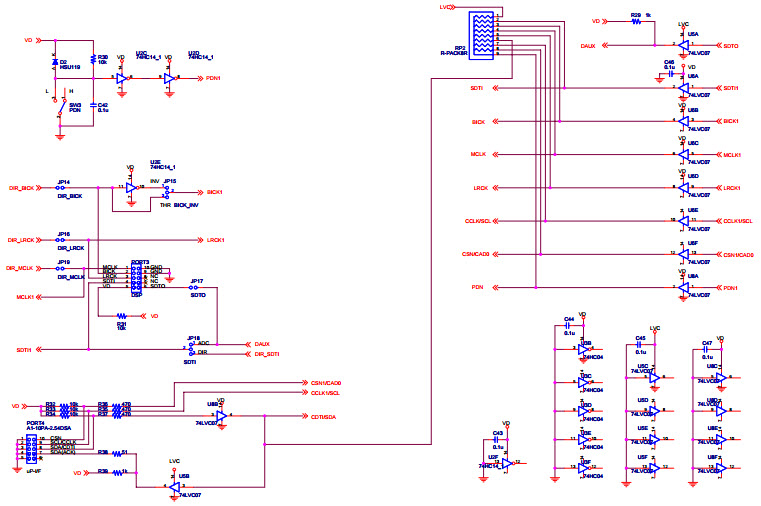

Interface (Sheet 5 of 5)
Image 1 / 5

Manufacturer

Asahi Kasei Microdevices Corporation
  • Application Category
    CODEC
  • Product Type
    Audio CODEC

For End Products

  • Audio Interfaces

Description

  • AKD4665A-A, Evaluation Board for the AK4665A, 20bit CODEC with built-in Input PGA and HeadPhone Amplifier. The AKD4665A-A can evaluate A/D converter and D/A converter separately in addition to loopback mode (A/D to D/A). The AKD4665A-A also has the digital audio interface and can achieve the interface with digital audio systems via opt-connector

Key Features

  • CODEC Resolution
    20 Bit

Featured Parts (10)

Featured Parts
Part Number Manufacturer Type Description
74LVC07APW/S411,11 Nexperia Buffers and Line Drivers HEX BUFFER WITH OPEN-DRAIN OUTPUTS Buy
74LVC07APW,118 Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R Buy
74LVC07APW/AUJ Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R Buy
74LVC07APW/AUJ Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R Buy
74LVC07APW-Q100J Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R Automotive AEC-Q100 Buy
74LVC07APW,118 Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin TSSOP T/R Buy
74LVC07AD,118 Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin SO T/R Buy
74LVC07ABQ-Q100X Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS Automotive AEC-Q100 14-Pin DHVQFN EP T/R Buy
74LVC07ABQ,115 Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin DHVQFN EP T/R Buy
74LVC07AD-Q100J Nexperia Buffers and Line Drivers Buffer/Driver 6-CH Non-Inverting Open Drain CMOS 14-Pin SO T/R Automotive AEC-Q100 Buy
