ADM00556, Evaluation Board to MCP1642B Two-Cells to USB Power

Reference Design using part MCP1642B-50I/MS by Microchip Technology

Enlarge

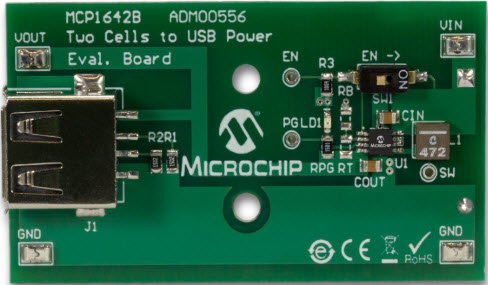

ADM00556 Image
ADM00556 Schematic
Image 1 / 2

Manufacturer

Microchip Technology
  • Application Category
    Power Supplies
  • Product Type
    DC to DC Single Output Power Supplies
Buy

Associated Documents

For End Products

  • Power Supplies

Description

  • ADM00556, Evaluation Board is used to evaluate and demonstrate the MCP1642B Switching Boost Regulator. This board demonstrates the MCP1642B capabilities in a boost-converter application supplied from two AA batteries or from an external voltage source. A USB cable can be connected to the output of MCP1642B Two-Cells to USB Power Evaluation Board and used to provide power to portable electronic devices when necessary. It can be used to evaluate the MSOP-8 package. The MCP1642B Two-Cells to USB Power Evaluation Board was developed to help engineers reduce the product design cycle time. On the MCP1642B Two-Cells to USB Power Evaluation Board, the output voltage has the value of 5.0V, resulting in a simple and compact application

Key Features

  • Conversion Type
    DC to DC
  • Input Voltage
    1.8 to 5.5 V
  • Output Voltage
    5 V
  • Output Current
    0.7 A
  • Topology
    Boost

Featured Parts (1)

Featured Parts
Part Number Manufacturer Type Description
MCP1642B-50I/MS Microchip Technology DC to DC Converter and Switching Regulator Chip Conv DC-DC 0.65V to 5.5V Synchronous Step Up Single-Out 5V 0.8A 8-Pin MSOP Tube Buy
