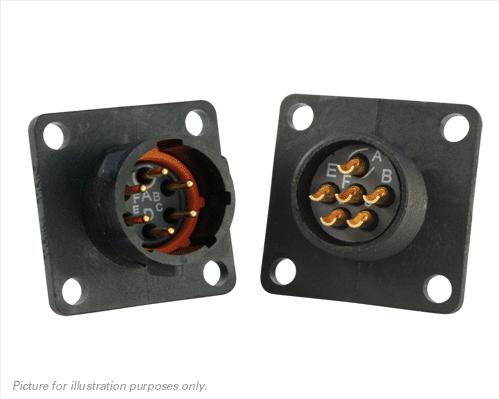

SOURIAUUTS010E6PConnector Circular
Conn Circular PIN 6 POS Solder Cup ST Flange Mount 6 Terminal 1 Port
| Compliant | |
| EAR99 | |
| 8536.69.40.20 | |
| Automotive | No |
| PPAP | No |
| MIL-DTL-26482 | |
| Circular | |
| RCP | |
| Flange Mount | |
| Straight | |
| N | |
| 1 | |
| 6 | |
| 6 | |
| PIN | |
| Solder Cup | |
| 10-6 | |
| 20-24 | |
| No | |
| Copper Alloy | |
| Gold Over Nickel | |
| Thermoplastic | |
| 7.5/Contact | |
| 600V | |
| -40 | |
| 105 | |
| IP68/IP69K | |
| 5000 | |
| Bayonet Lock | |
| 250 | |
| 21.5 | |
| 23.8 | |
| 23.8 |
This input/output UTS010E6P connector from Souriau is perfect for making a solid connection between your cylindrical cable housing. This RCP connector has 6 RCP contacts. It has a receptacle type gender. Its shell size is 10-6. It has a straight body orientation. This device has a maximum current rating of 7.5 A/contact. This product is 21.5 mm long, 23.8 mm tall and 23.8 mm deep. It uses the solder cup termination method. This circular connector has an operating temperature of -40 to 105 °C.
