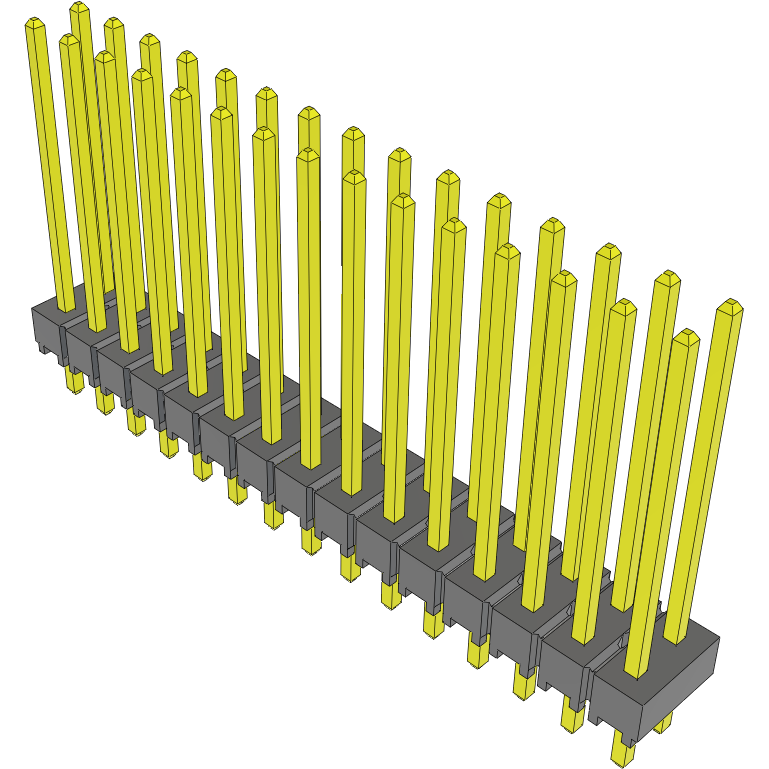

SamtecTSW-115-17-G-DConnector Headers and PCB Receptacles

Look no further than the unshrouded TSW-115-17-G-D header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector's 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 125 °C. TSW-115-17-G-D is housed in black polyester. This product is 38.1 mm long, 18.28 mm tall and 5.08 mm deep. It uses the solder termination method.
