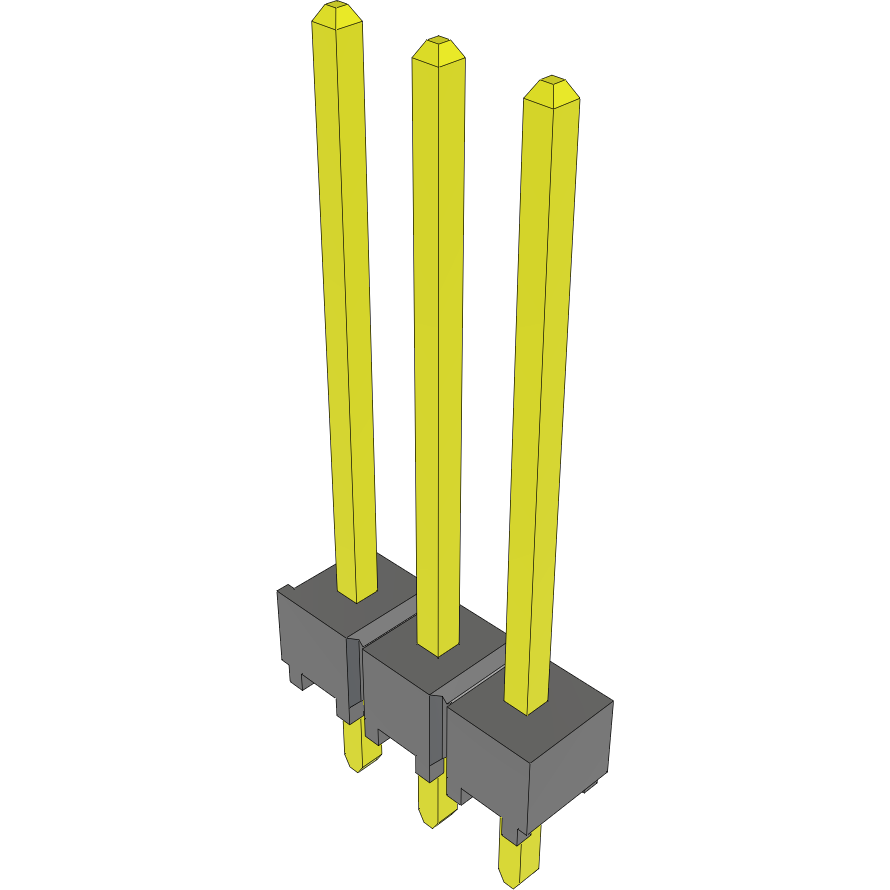

SamtecTSW-103-15-F-SConnector Headers and PCB Receptacles

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded TSW-103-15-F-S header connector from Samtec. This HDR connector's 3 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. TSW-103-15-F-S is housed in black polyester. This product is 7.62 mm long, 15.75 mm tall and 2.54 mm deep. It uses the solder termination method.
