Taiwan SemiconductorTSHA2101CQ-L3 M3GHall Effect Sensors

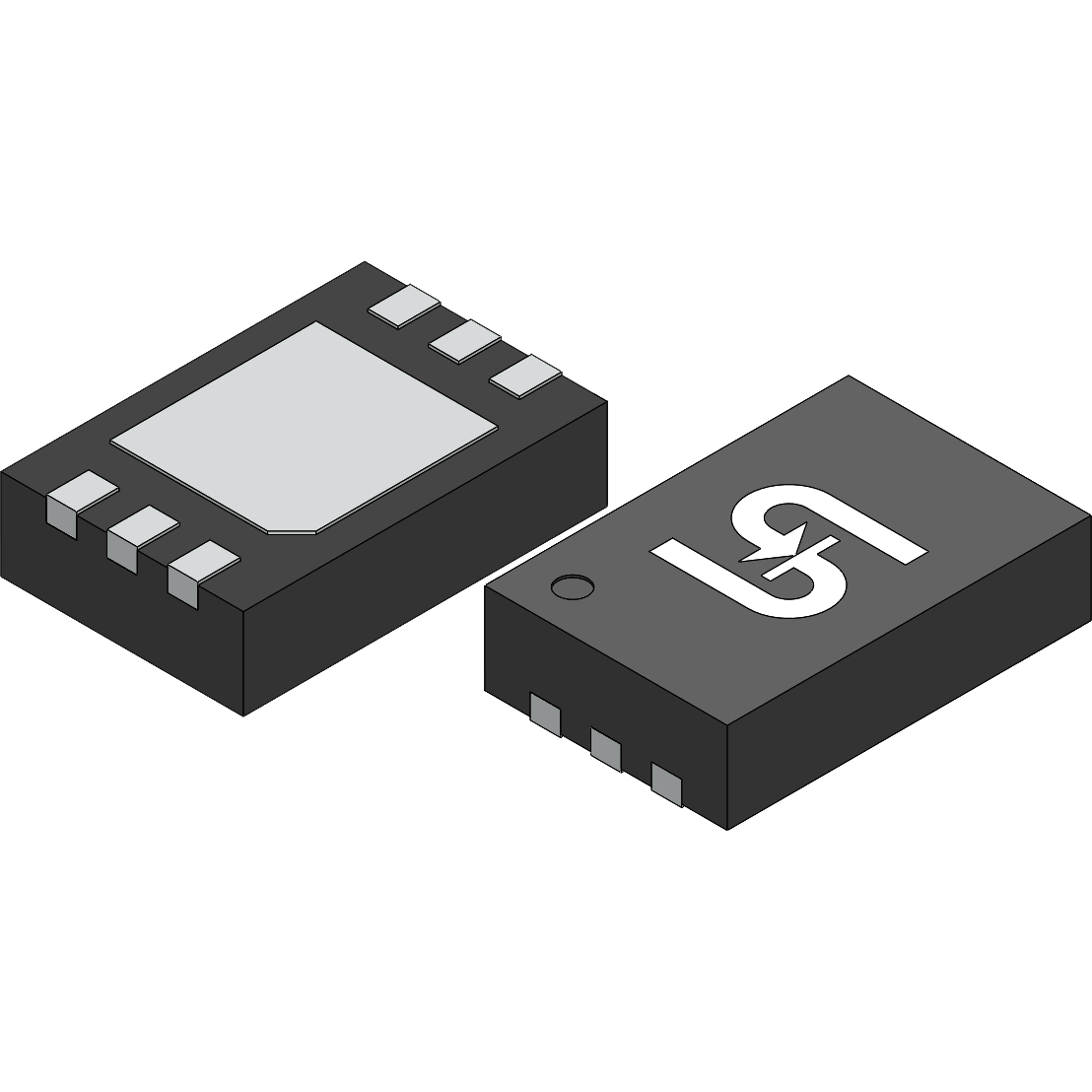

Hall Effect Sensor 500mA Omnipolar 5V/9V/12V/15V/18V/24V 6-Pin TDFN EP
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| Omnipolar | |
| IC | |
| ±19 | |
| 4 | |
| ±40 | |
| 500 | |
| 3.3 | |
| 5|9|12|15|18|24 | |
| 30 | |
| 100 | |
| -40 | |
| 105 | |
| Mounting | Surface Mount |
| Package Height | 0.8(Max) |
| Package Width | 3.05(Max) |
| Package Length | 2.05(Max) |
| PCB changed | 6 |
| Standard Package Name | DFN |
| Supplier Package | TDFN EP |
| 6 |
