| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Synchronous Step Down | |
| Adjustable | |
| 700 | |
| Yes | |
| 1 | |
| 0.76 to 5.5 | |
| 4 | |
| 4.5 | |
| 18 | |
| 4.5 to 18 | |
| 5.4 | |
| 850 | |
| 20mV | |
| 100mV | |
| -40 | |
| 85 | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 1.05(Max) mm |
| Package Width | 4.5(Max) mm |
| Package Length | 5.1(Max) mm |
| PCB changed | 14 |
| Standard Package Name | SO |
| Supplier Package | HTSSOP EP |
| 14 | |
| Lead Shape | Gull-wing |

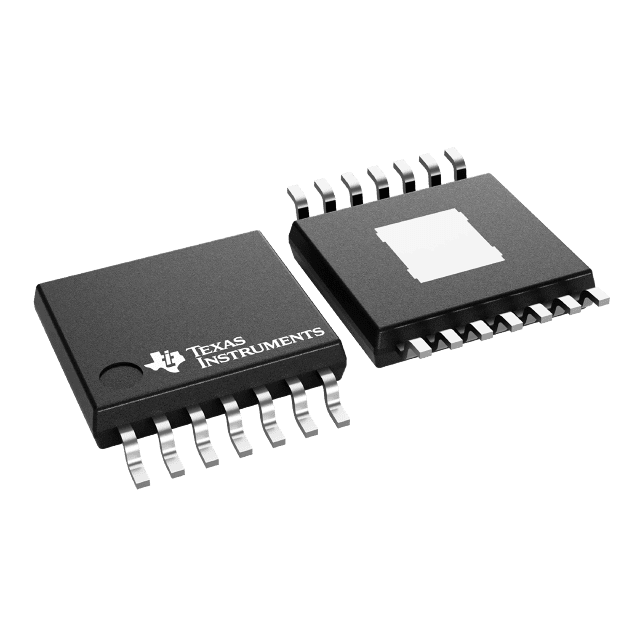

Adjust the voltage level of your devices with this step down TPS54425PWP DC to DC converter from Texas Instruments. This converter's single output can produce a current up to 4 A. This will operate at a minimum voltage of 4.5 V and a maximum voltage of 18 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.76 to 5.5 V, this is power management at its best. At a load regulation of 100mV and line regulation of 20mV a constant current can be produced at the output of your circuit. This part offers a switching frequency of 700(Typ) kHz in order to work properly. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
