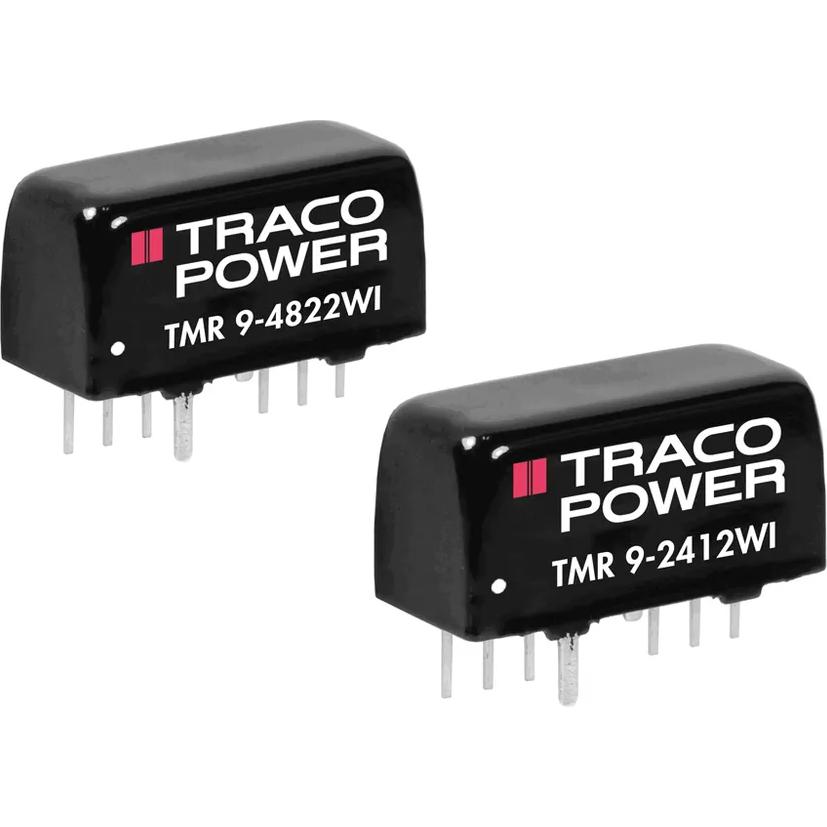

Traco PowerTMR 9-2423WIDC to DC Converter and Switching Regulator Module
Module DC-DC 24VIN 2-OUT -15V/15V -0.3A/0.3A 9W 10-Pin SIP Module
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Unknown |
| PPAP | Unknown |
| Inverting|Non-Inverting|Step Down | |
| 2 | |
| Isolated | |
| 9 | |
| 24 | |
| 36 | |
| -15|15 | |
| -0.3|0.3 | |
| 9 | |
| 1500VDC | |
| DC/DC | |
| 2.5(Max) | |
| 500(Typ) | |
| Yes | |
| 5% | |
| 0.2% | |
| 88(Typ) | |
| Negative | |
| -40 | |
| 85 | |
| 5.9 | |
| Fixed | |
| Mounting | Through Hole |
| Package Height | 11.2 |
| Package Width | 9.6 |
| Package Length | 21.8 |
| PCB changed | 10 |
| Standard Package Name | SIP |
| Supplier Package | SIP Module |
| 10 | |
| Lead Shape | Through Hole |
