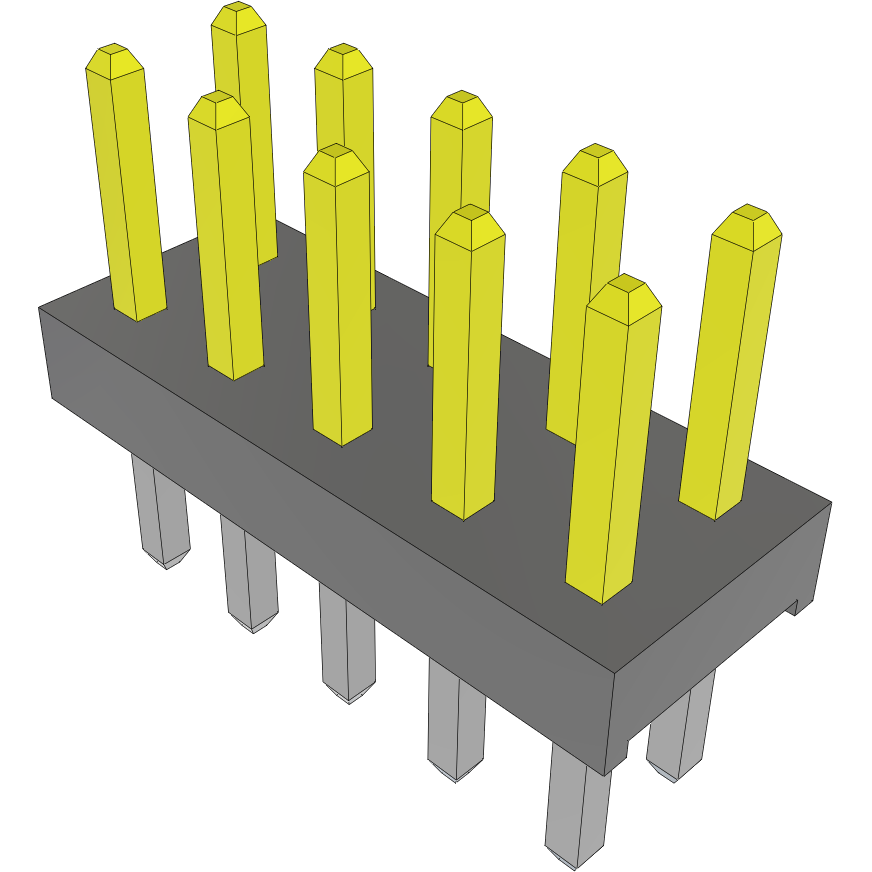

SamtecTMM-105-02-S-DConnector Headers and PCB Receptacles

Use this unshrouded TMM-105-02-S-D connector from Samtec when board-to-board interconnects is required. This HDR connector's 10 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 500 VAC. This device has a maximum current rating of 5.5 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 10 mm long, 5.2 mm tall and 3.94 mm deep. It uses the solder termination method. TMM-105-02-S-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.
