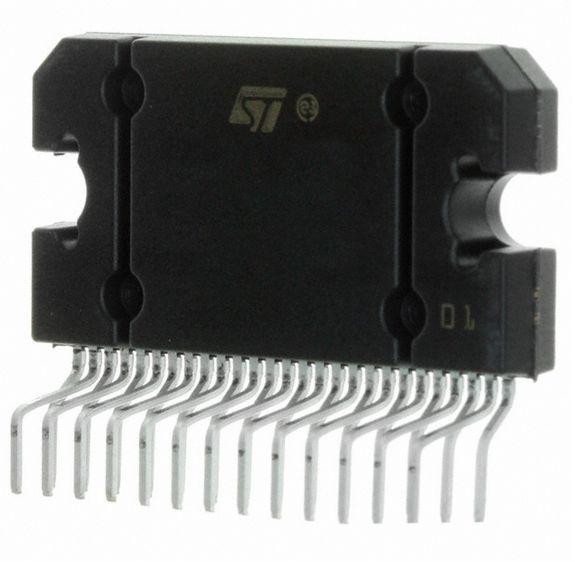

STMicroelectronicsTDA7562BAudio Amplifiers
Audio Amp Speaker 4-CH Stereo 45W Class-AB Automotive AEC-Q100 27-Pin FLEXIWATT(Vertical) Tube
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | Yes |
| PPAP | Unknown |
| Speaker | |
| Class-AB | |
| 0.04%@4Ohm@10W|0.02%@4Ohm | |
| Differential | |
| 4-Channel Stereo | |
| 8000 | |
| 100 | |
| 8 | |
| 9|12|15 | |
| 18 | |
| 300@14.4V | |
| Single | |
| 70x4@2Ohm | |
| 45x4@2Ohm | |
| 85000 | |
| -55 | |
| 105 | |
| Tube | |
| Mounting | Through Hole |
| Package Height | 15.7 |
| Package Width | 4.5 |
| Package Length | 29.23 |
| PCB changed | 27 |
| Supplier Package | FLEXIWATT(Vertical) |
| 27 |
This TDA7562B class D amplifier from STMicroelectronics is perfect for enhancing the sound of your system. Its maximum power dissipation is 85000 mW. This audio amplifier can handle a current up to 8000 mA. It has a single input signal and a differential output signal. It has a maximum load resistance of 4 Ohm. It has a 4-channel stereo output. This audio amplifier has a temperature range of -55 °C to 105 °C. This device uses a single power supply.
