| Compliant | |
| EAR99 | |
| Active | |
| 8541.90.00.00 | |
| Automotive | No |
| PPAP | No |
| Quad | |
| Enhancement | |
| N|P | |
| 4 | |
| 200 | |
| 6000@10V@N Channel|7000@10V@P Channel | |
| 56@25V@N Channel|75@25V@P Channel | |
| 15(Max) | |
| 15(Max) | |
| 20(Max) | |
| 10(Max) | |
| -55 | |
| 150 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.88 |
| Package Width | 4 |
| Package Length | 4 |
| PCB changed | 12 |
| Standard Package Name | DFN |
| Supplier Package | DFN EP |
| 12 | |
| Lead Shape | No Lead |

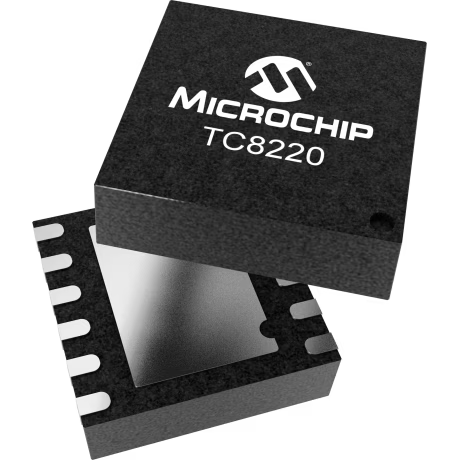

Thanks to Microchip Technology, both your amplification and switching needs can be taken care of with one component: the TC8220K6-G power MOSFET. This MOSFET transistor has an operating temperature range of -55 °C to 150 °C. This N|P channel MOSFET transistor operates in enhancement mode.
