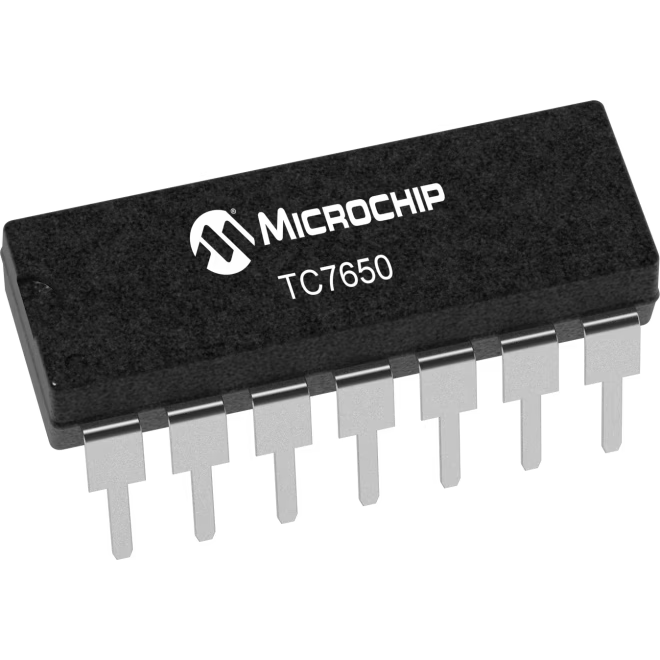

Microchip TechnologyTC7650CPDOperational Amplifiers - Op Amps
Op Amp Single Chopper Amplifier ±8V 14-Pin PDIP Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.33.00.01 | |
| Automotive | No |
| PPAP | No |
| Chopper Amplifier | |
| Zero Drift Amplifier | |
| 1 | |
| CMOS | |
| 0.005@±5V | |
| ±2.25 | |
| ±3|±5 | |
| ±8 | |
| 0.0000005(Typ)@±5V | |
| 0.000015@±2.5V | |
| 0.00001@±5V | |
| 3.5@±5V | |
| 10(Max) | |
| Dual | |
| 800 | |
| 2.5@±5V | |
| 130 | |
| 0.01@±5V | |
| 120 | |
| 120 | |
| >=115 | |
| 2 | |
| No | |
| 0 | |
| 70 | |
| Tube | |
| Mounting | Through Hole |
| Package Height | 3.3 mm |
| Package Width | 6.35 mm |
| Package Length | 19.05 mm |
| PCB changed | 14 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| 14 | |
| Lead Shape | Through Hole |
Microchip Technology brings you their latest chopper stabilization TC7650CPD differential amplifier, a component that can be used to output a better quality sound than a mono amplifier. Its maximum power dissipation is 800 mW. It has a CMOS output. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2.25 V and maximum of ±8 V. This part has a temperature range of 0 °C to 70 °C. This device uses dual power supplies. It has a single channel per chip.
