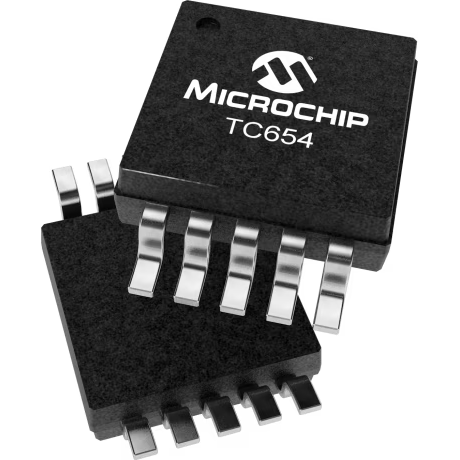

Microchip TechnologyTC654EUNFan Controllers
Fan Speed Controllers With Fan Fault Detection
| Compliant | |
| EAR99 | |
| Active | |
| 8542.31.00.30 | |
| Automotive | No |
| PPAP | No |
| 3 | |
| 5.5 | |
| 0.3 | |
| PWM | |
| -40 | |
| 85 | |
| -65 | |
| 150 | |
| SMBus | |
| 1 | |
| No | |
| No | |
| Mounting | Surface Mount |
| Package Height | 0.85 |
| Package Width | 3 |
| Package Length | 3 |
| PCB changed | 10 |
| Standard Package Name | SO |
| Supplier Package | MSOP |
| 10 | |
| Lead Shape | Gull-wing |
Your circuit can save energy by using soft switching and this high speed pwm TC654EUN PWM controller by Microchip Technology. This soft switching controller has single output. Its output produces a current of 5(Min) mA. With an output that has a voltage of -0.3 to 5.8 V, this is power management at its best. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5 V. This soft switching controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.
