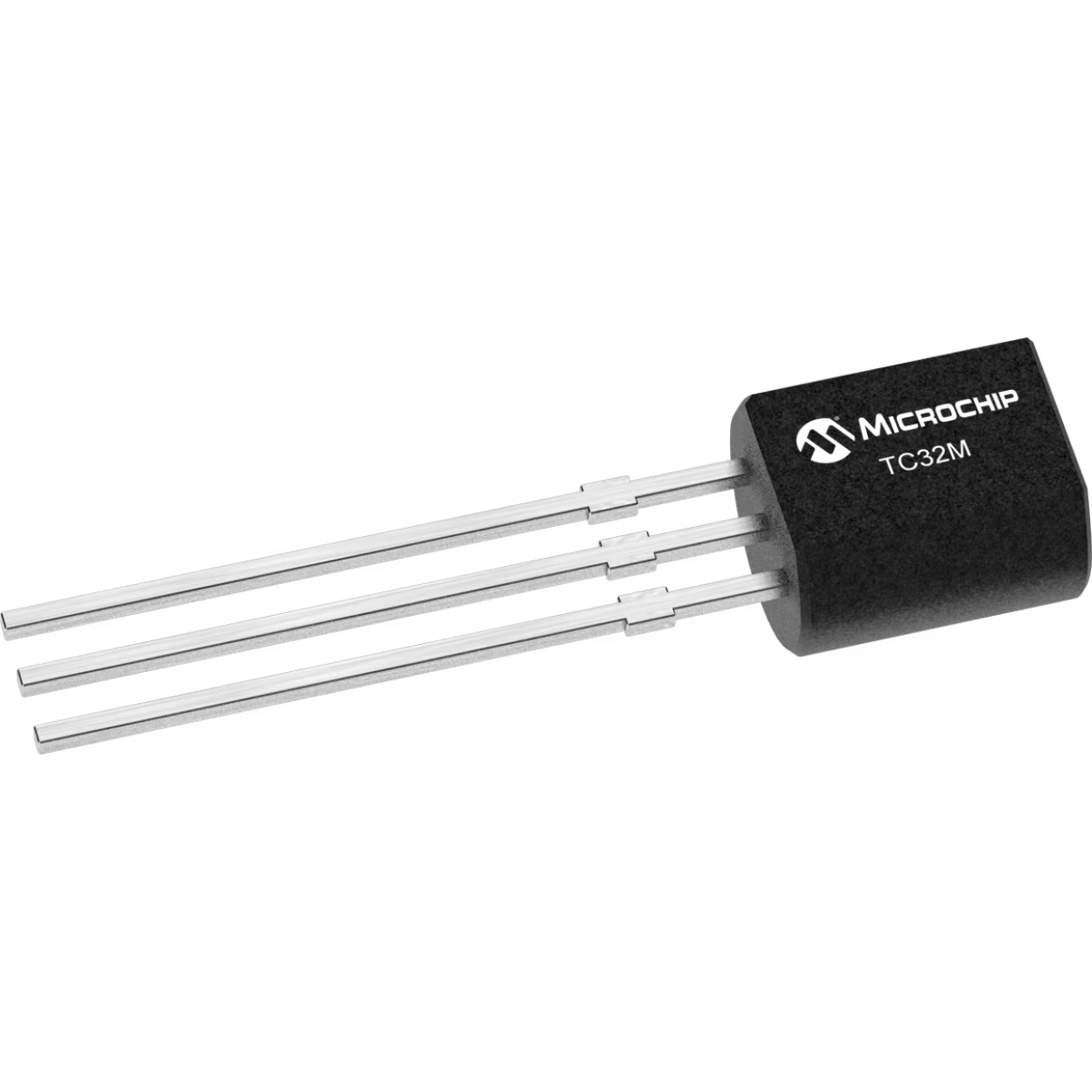

Microchip TechnologyTC32MCZBSupervisory Circuits
Processor Supervisor 1 Active Low/Open Drain 3-Pin TO-92 Bag
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | Unknown |
| 1 | |
| 900 | |
| Active Low/Open Drain | |
| 4.25 | |
| 4.5 | |
| 4.5 | |
| 5.5 | |
| 200 | |
| No | |
| Yes | |
| No | |
| No | |
| No | |
| 0 | |
| 70 | |
| Commercial | |
| Bag | |
| Power Supply Monitor | |
| Mounting | Through Hole |
| Package Height | 5.33(Max) mm |
| Package Width | 4.19(Max) mm |
| Package Length | 5.21(Max) mm |
| PCB changed | 3 |
| Standard Package Name | TO |
| Supplier Package | TO-92 |
| 3 |
If your core processor fails to meet your circuit's demands, use the TC32MCZB microprocessor supervisory circuit from Microchip Technology as a backup. This part has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device has a minimum operating supply voltage of 4.5 V and a maximum of 5.5 V. It has a minimum reset threshold voltage of 4.25 V and a maximum of 4.5 V.
| EDA / CAD Models |
