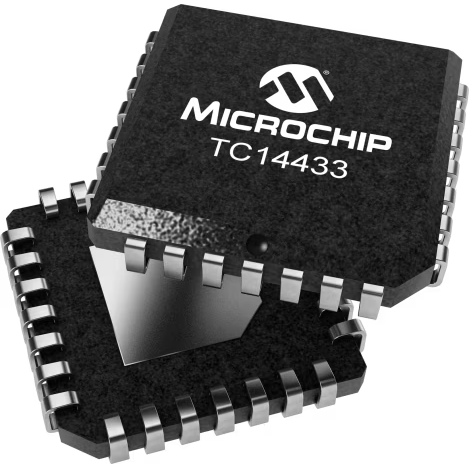

Microchip TechnologyTC14433ELIAnalog to Digital Converters - ADCs
1-Channel Single ADC Dual Slope 25sps 3 1/2Digit BCD 28-Pin PLCC Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.30 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| Dual Slope | |
| 3 1/2Digit | |
| 1 | |
| 1 | |
| 25sps | |
| BCD | |
| Voltage | |
| Single-Ended | |
| External | |
| Unipolar | |
| Dual | |
| 1.999V | |
| ±5 | |
| 1000 | |
| ±1Counts | |
| No | |
| Yes | |
| -40 | |
| 85 | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 3.87 |
| Package Width | 11.51 |
| Package Length | 11.51 |
| PCB changed | 28 |
| Standard Package Name | LCC |
| Supplier Package | PLCC |
| 28 | |
| Lead Shape | J-Lead |
A must-have for data processing uses, this TC14433ELI ADC made by Microchip Technology will translate analog electrical signals. Its maximum power dissipation is 1000 mW. This device's digital interface is bcd. It has a single-ended input signal. This device is based on Dual Slope architecture. This ADC has a resolution of 3 1/2Digit. This ADC has an input voltage of 1.999 V. Its typical dual supply voltage is ±5 V, with a minimum of ±4.5 V and maximum of ±8 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 85 °C.
