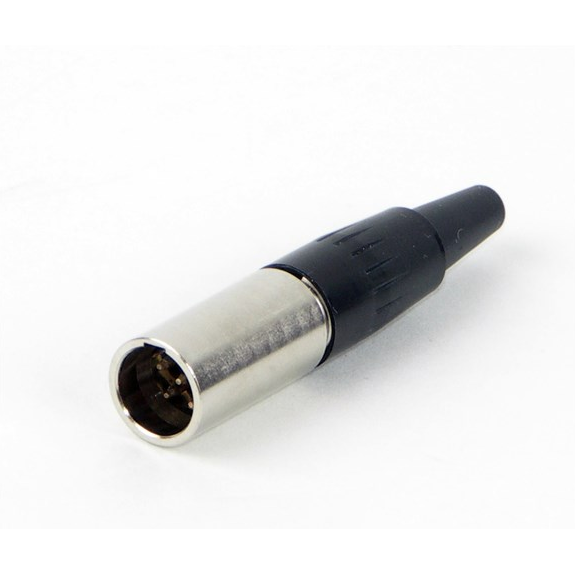

SwitchcraftTA5MXConnector Audio and Video
Conn Mini XLR Connector M 5 POS Solder ST Cable Mount 5 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.30 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Mini XLR Connector | |
| M | |
| 5 | |
| 5 | |
| 1 | |
| Solder | |
| Straight | |
| 4 | |
| 125VAC | |
| 10000 | |
| 10 | |
| -55 | |
| 85 | |
| 10.5 | |
| 51.4 | |
| Cable Mount | |
| Copper Alloy | |
| Silver | |
| Copper Alloy |
The mini xlr connector TA5MX audio and video connector from Switchcraft allows you to operate video and sound in your design. This M connector's 5 contacts that are made out of copper alloy and plated with silver. It has a maximum voltage rating of 125 VAC. It has a male type gender. This connector has a single port. It has a straight body orientation. TA5MX is housed in copper alloy. This device has a maximum current rating of 4 A. Its 5 terminals use the solder termination method. This product is 51.4 mm long with a diameter of 10.5 mm. This cable has an operating temperature range of -55 °C to 85 °C.
