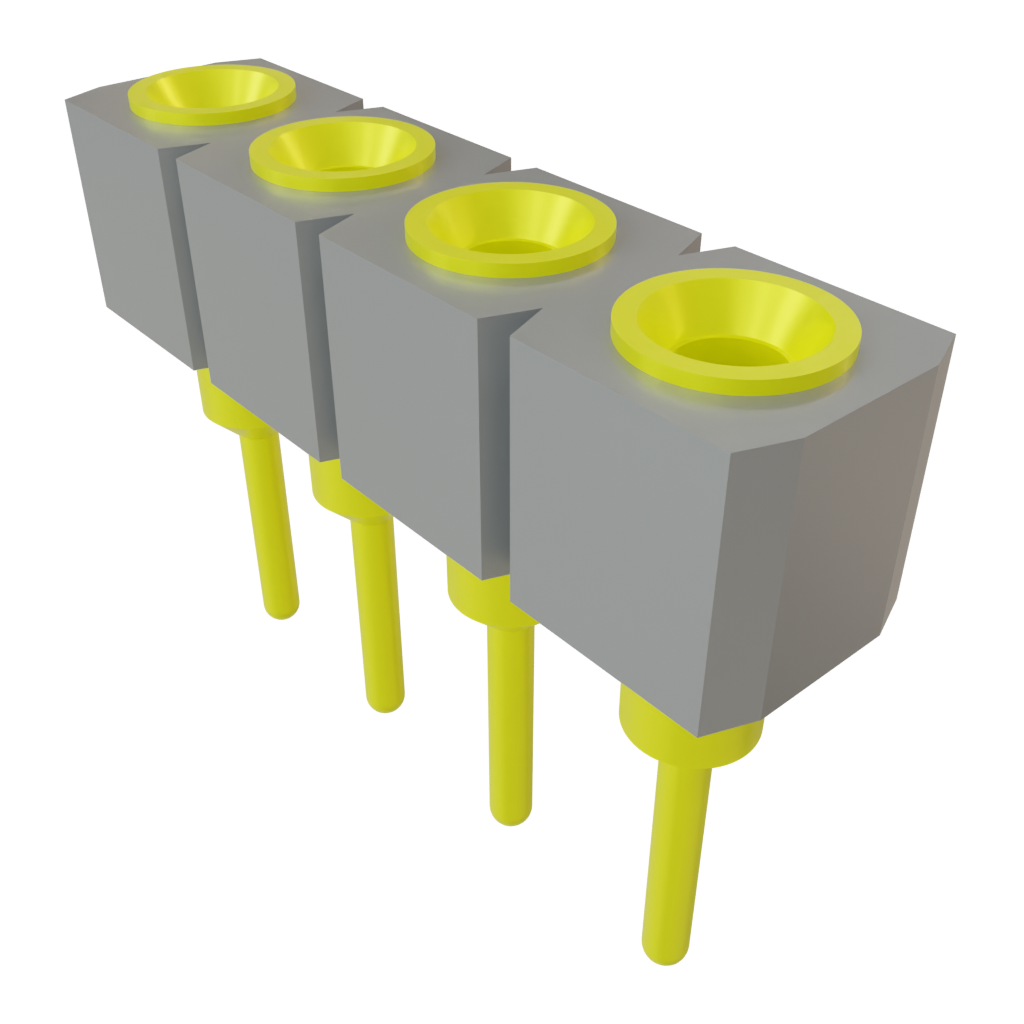

SamtecSS-104-T-2Connector Headers and PCB Receptacles

Mounting this socket strip SS-104-T-2 header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This SKT connector's 4 contacts that are made out of beryllium copper and plated with gold over nickel. This is a 1-row connector. It has a socket type gender. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 1 A/contact. This product is 10.16 mm long, 4.44 mm tall and 2.54 mm deep. It uses the solder termination method. SS-104-T-2 is housed in black polyester. This connector has an operating temperature of -55 to 125 °C.
