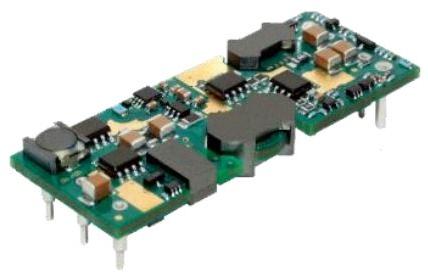

Bel Power SolutionsSQ24T03150-NEC0DC to DC Converter and Switching Regulator Module
Module DC-DC 24VIN 1-OUT 15V 3.3A 50W 8-Pin 1/8-Brick
| Not Compliant | |
| EAR99 | |
| Obsolete | |
| Automotive | No |
| PPAP | No |
| Step Down | |
| Isolated | |
| 1 | |
| 19 | |
| 24 | |
| 36 | |
| 15 | |
| 3.3 | |
| 50 | |
| DC/DC | |
| Yes | |
| Negative | |
| -40 | |
| 85 | |
| Fixed | |
| Mounting | Through Hole |
| Package Height | 7.57(Max) - 0.23(Min) |
| Package Width | 22.76 |
| Package Length | 58.42 |
| PCB changed | 8 |
| Supplier Package | 1/8-Brick |
| 8 | |
| Lead Shape | Through Hole |
Provide the ability to switch between voltages by using this step down SQ24T03150-NEC0 DC to DC converter and switching regulator module. It has a voltage of 15 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
