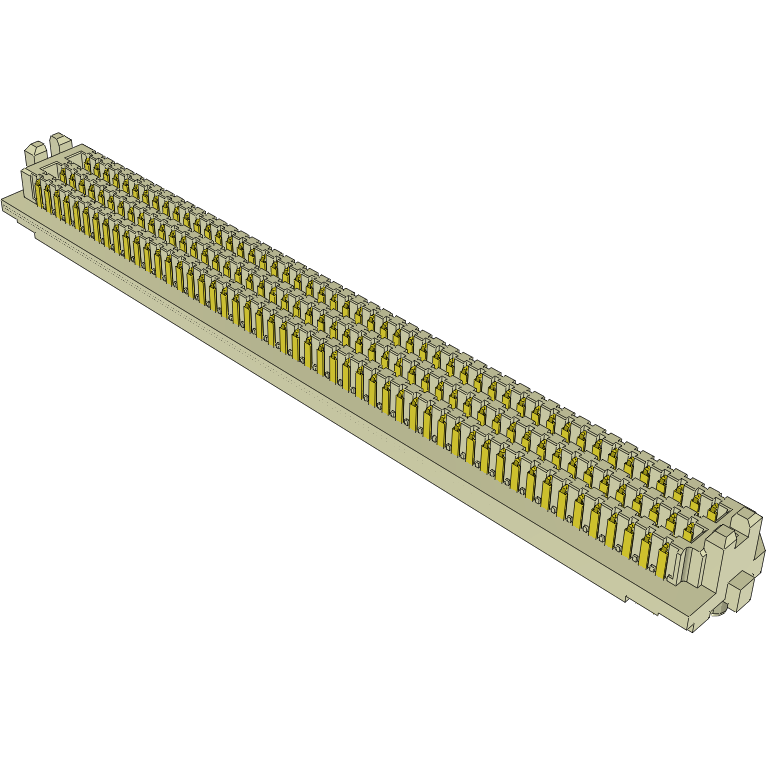

SamtecSEAMP-50-02.0-S-06Connector Headers and PCB Receptacles
Conn Open Pin Field Array HDR 300 POS 1.27mm Press Fit ST Top Entry Thru-Hole SEARAY™ Tray
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Open Pin Field Array | |
| HDR | |
| 300 | |
| 6 | |
| Press Fit | |
| 1.27 | |
| Straight | |
| 1.27 | |
| 28 | |
| 1.9/Contact | |
| 361VDC|255VAC | |
| 50000 | |
| 15 | |
| -55 | |
| 125 | |
| 1000 | |
| Tray | |
| 68.68 | |
| 9.6 | |
| 5.84 | |
| SEARAY™ | |
| Contact Plating Thickness | (0.76/1.27)um |
| 1.23 | |
| Through Hole |
| EDA / CAD Models |
