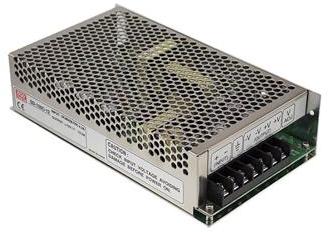

MEAN WELLSD-150B-12DC to DC Converter and Switching Regulator Module
Module DC-DC 24VIN 1-OUT 12V 12.5A 150W 7-Pin
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| Step Down | |
| Isolated | |
| 1 | |
| 19 | |
| 24 | |
| 36 | |
| 12 | |
| 12.5 | |
| 150 | |
| 1500VAC | |
| DC/DC | |
| No | |
| 0.5% | |
| 0.5% | |
| 75(Typ) | |
| -10 | |
| 60 | |
| 860 | |
| Fixed | |
| Mounting | Chassis |
| Package Height | 50 mm |
| Package Width | 110 mm |
| Package Length | 199 mm |
| PCB changed | 7 |
| 7 |
Change an input DC supply to a level that meets your standards using this SD-150B-12 DC to DC power supply from Mean-Well USA, Inc. It has a voltage of 12 V. This part has an input voltage of 19 to 36 V. This part has a temperature range of -10 °C to 60 °C.
