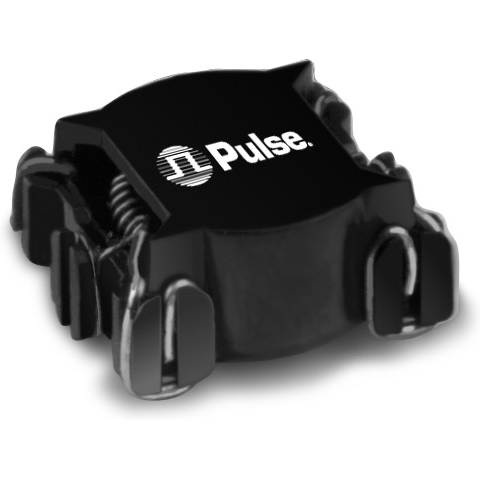

Pulse ElectronicsPE-68280NLTCurrent Transformers
Current Transformer 1:1:100 500Vrms 0.001Ohm Prim. DCR 0.93Ohm Sec. DCR 15000mA Prim. 6 Terminal SMD
| Compliant | |
| EAR99 | |
| Active | |
| 8504.31.20.00 | |
| Automotive | No |
| PPAP | No |
| Current Sense Transformer | |
| 1:1:100 | |
| 15000 | |
| 14800 | |
| 0.001 | |
| 0.93 | |
| 500Vrms | |
| Surface Mount | |
| 6 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 14.61 | |
| 12.57 | |
| 7.11 |
Look no further, use this PE-68280NLT current transformer by Pulse to step down high alternating current in order to safely measure the current flow in high voltage and current circuits. It has an operating frequency of 50K to 500K Hz. This current transformer has a minimum operating temperature of -40 °C and a maximum of 130 °C. It has 6 terminals. It has a turn ratio of 1:1:100. The maximum DCR on the primary side is 0.001 Ohm, while its 0.93 Ohm on the secondary side. This product is 14.61 mm long, 7.11 mm tall and 12.57 mm deep. It also has a current sense transformer.
