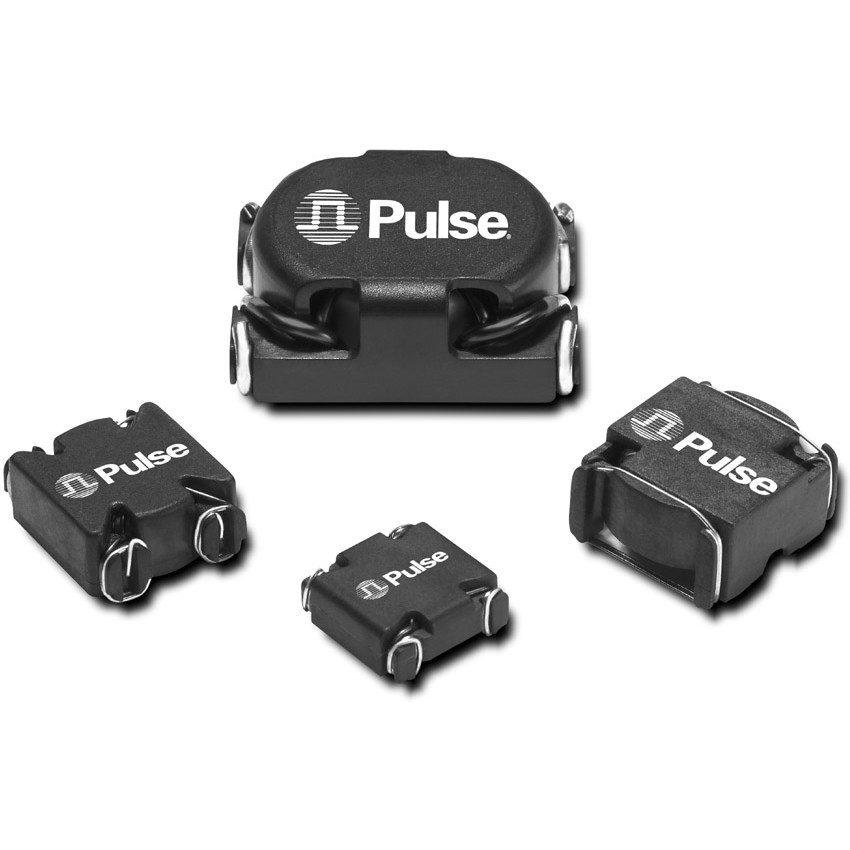

Pulse ElectronicsPE-53604NLTInductor Surface Mount
Inductor Power Shielded Toroid 73uH/58.1uH 1.3A 0.29Ohm DCR T/R
| Compliant | |
| EAR99 | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Power | |
| Toroid | |
| Shielded | |
| 73u(OCL)/58.1u | |
| 1.3 | |
| 0.29 | |
| 2 | |
| -40 | |
| 130 | |
| Tape and Reel | |
| 14.48 | |
| Surface Mount | |
| 14.35 | |
| 9.14 |
This power PE-53604NLT surface mount inductor from Pulse is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 1.3 A with a maximum resistance of 290m Ohm. It has an inductance of 73u/58.1u(Rated) H. This product is 14.48 mm long, 9.14 mm tall and 14.35 mm deep. This device utilizes wirewound technology.
