| Compliant | |
| EAR99 | |
| Active | |
| 8504.40.95.10 | |
| Automotive | No |
| PPAP | No |
| Constant Current | |
| AC/DC | |
| 1 | |
| 24 to 36 | |
| 700 | |
| 25.2 | |
| 180VAC to 295VAC | |
| PWM | |
| 0.9(Min) | |
| 81(Typ) | |
| Lead Wire | |
| IP42 | |
| 3Year | |
| -30 | |
| 60 | |
| 190 | |
| Mounting | Screw |
| Package Height | 29.5 mm |
| Package Width | 56 mm |
| Package Length | 102 mm |
| PCB changed | 4 |
| 4 | |
| Lead Shape | Lead Wire |

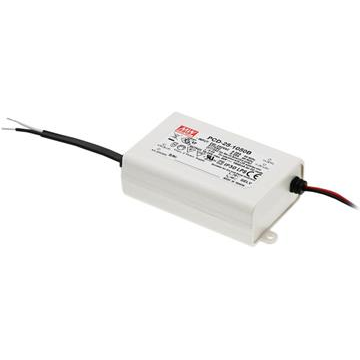

This PCD-25-700B AC to DC power supply from Mean-Well USA, Inc. converts an alternating current source to a direct current supply. It has a voltage of 24 to 36 V and maximum output power of 25.2 W. This part's single output can handle a current up to 0.7 A. This part has a minimum operating temperature of -30 °C and a maximum of 60 °C.
