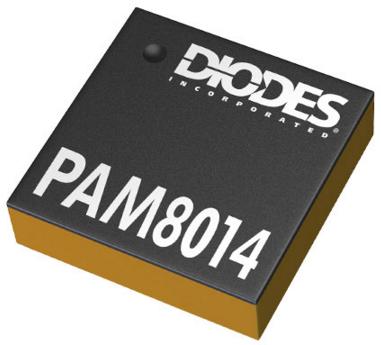

Diodes IncorporatedPAM8014AZRAudio Amplifiers
Audio Amp Speaker 1-CH Mono 3.2W Class-D 9-Pin U-WLB T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.33.00.01 | |
| Automotive | No |
| PPAP | No |
| Speaker | |
| Class-D | |
| 0.17%@8Ohm@1W|0.14%@4Ohm@0.5W | |
| Differential | |
| 1-Channel Mono | |
| 2.5 | |
| 3|5 | |
| 5.5 | |
| Single | |
| 3.2x1@4Ohm | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.34 mm |
| Package Width | 1.24(Min) mm |
| Package Length | 1.24(Min) mm |
| PCB changed | 9 |
| Supplier Package | U-WLB |
| 9 |
