LED Power Supplies

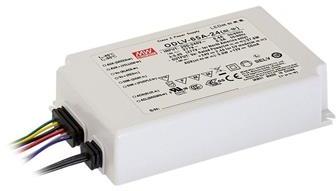

ODLV-65-12

AC/DC LED Power Supply 50.4W Single 6-Pin

MEAN WELL

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8504.40.95.20

• Automotive

  No

• PPAP

  No

• Type

  Constant Voltage

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Voltage Range (VDC)

  12(Typ)

• Maximum Output Current (mA)

  4200

• Output Power (W)

  50.4

• Input Voltage Range

  180VAC to 295VAC|254VDC to 417VDC

• Dimming

  0-10V/PWM

• Power Factor Correction

  0.95(Min)

• Efficiency (%)

  85(Typ)

• Termination Style

  Lead Wire

• IP Rating

  IP67

• Warranty

  3Year

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  85

• Product Weight (g)

  430

• Mounting

  Screw

• Package Height

  28.5 mm

• Package Width

  77 mm

• Package Length

  121 mm

• PCB changed

  6

• Pin Count

  6

• Lead Shape

  Lead Wire
