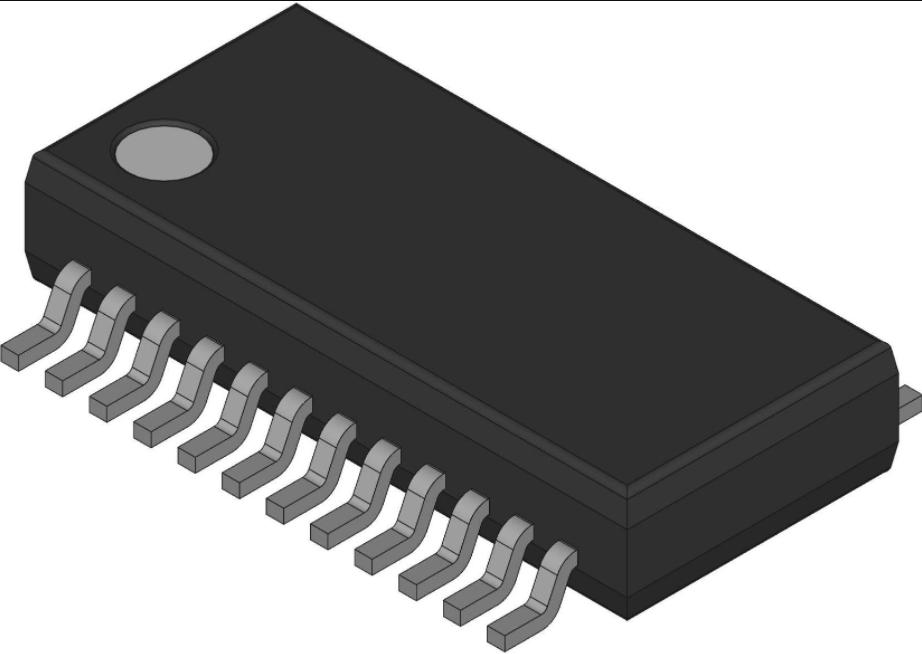

onsemiNCV7725DQBR2GMotor Controller and Driver ICs
H-Bridge Motor Driver Automotive AEC-Q100 24-Pin SSOP N EP T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | Yes |
| PPAP | Yes |
| Motor Driver | |
| DC Motor | |
| PWM | |
| H-Bridge | |
| -0.3 to 45 | |
| 0.5 | |
| 1.1 | |
| 3.15 | |
| 3.15 to 5.25 | |
| 5.25 | |
| 3 | |
| -40 | |
| 125 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 1.65(Max) |
| Package Width | 3.9 |
| Package Length | 8.64 |
| PCB changed | 24 |
| Standard Package Name | SO |
| Supplier Package | SSOP N EP |
| 24 |
| EDA / CAD Models |
