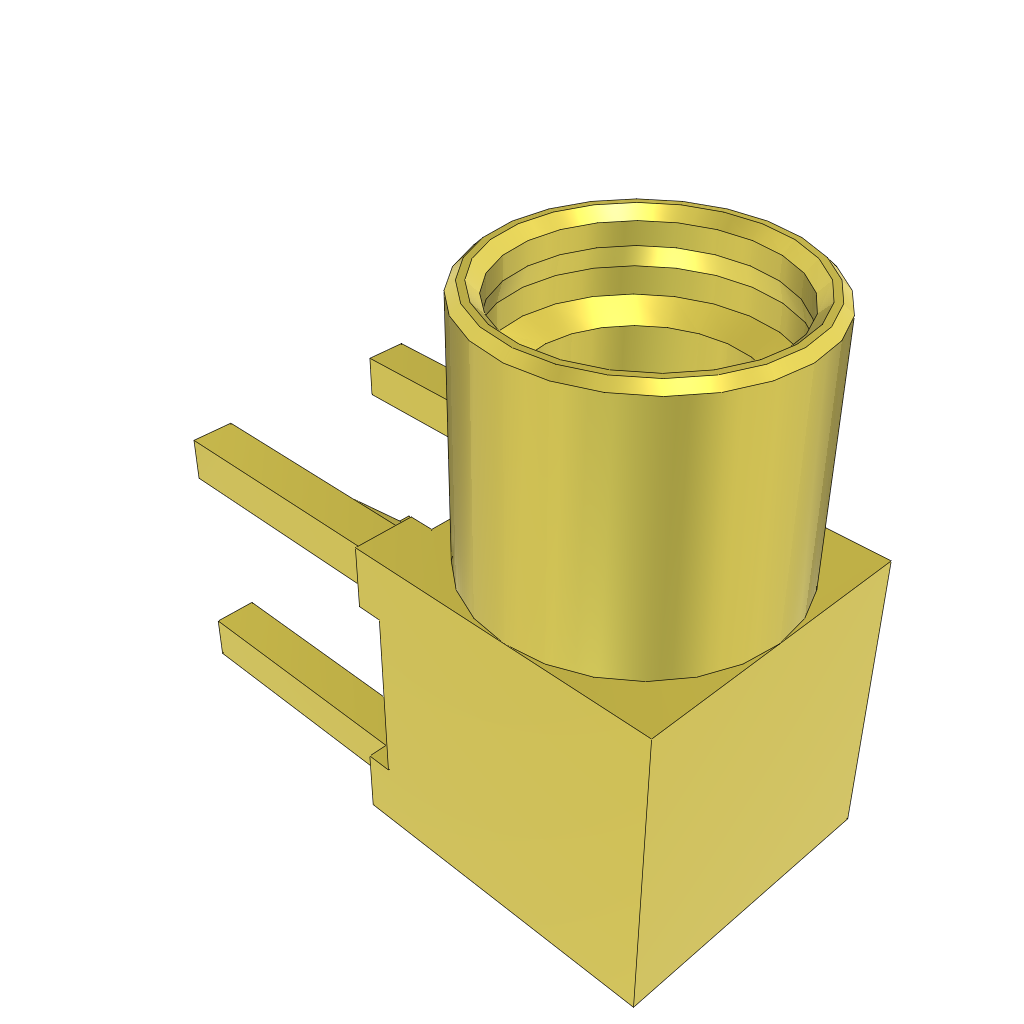

SamtecMMCX-J-P-H-RA-TH1Connector RF
Conn MMCX 0Hz to 6GHz 50Ohm Solder RA Thru-Hole F Gold Over Nickel Tray
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| MMCX | |
| F | |
| Solder | |
| Right Angle | |
| F | |
| Gold Over Nickel | |
| 0 to 6G | |
| 50 | |
| 1000 | |
| Standard | |
| -40 | |
| 90 | |
| Tray | |
| 3.5 | |
| 6.5 | |
| 3.8 | |
| Through Hole |
Looking for low transmission line impedance for your coaxial cable connection? Than this mmcx MMCX-J-P-H-RA-TH1 RF connector manufactured from Samtec is ideal for your needs. This connector's body is plated in gold over nickel. It has a right angle body orientation. It has a female type gender. It has an operating frequency of 0 to 6G Hz. This product is 3.5 mm deep. It uses the solder termination method. This rf connector has an operating temperature of -40 to 90 °C.
| EDA / CAD Models |
