MikroElektronikaRaspberry Pi 3 Click Shield | MIKROE-2756Development Kits and Tools

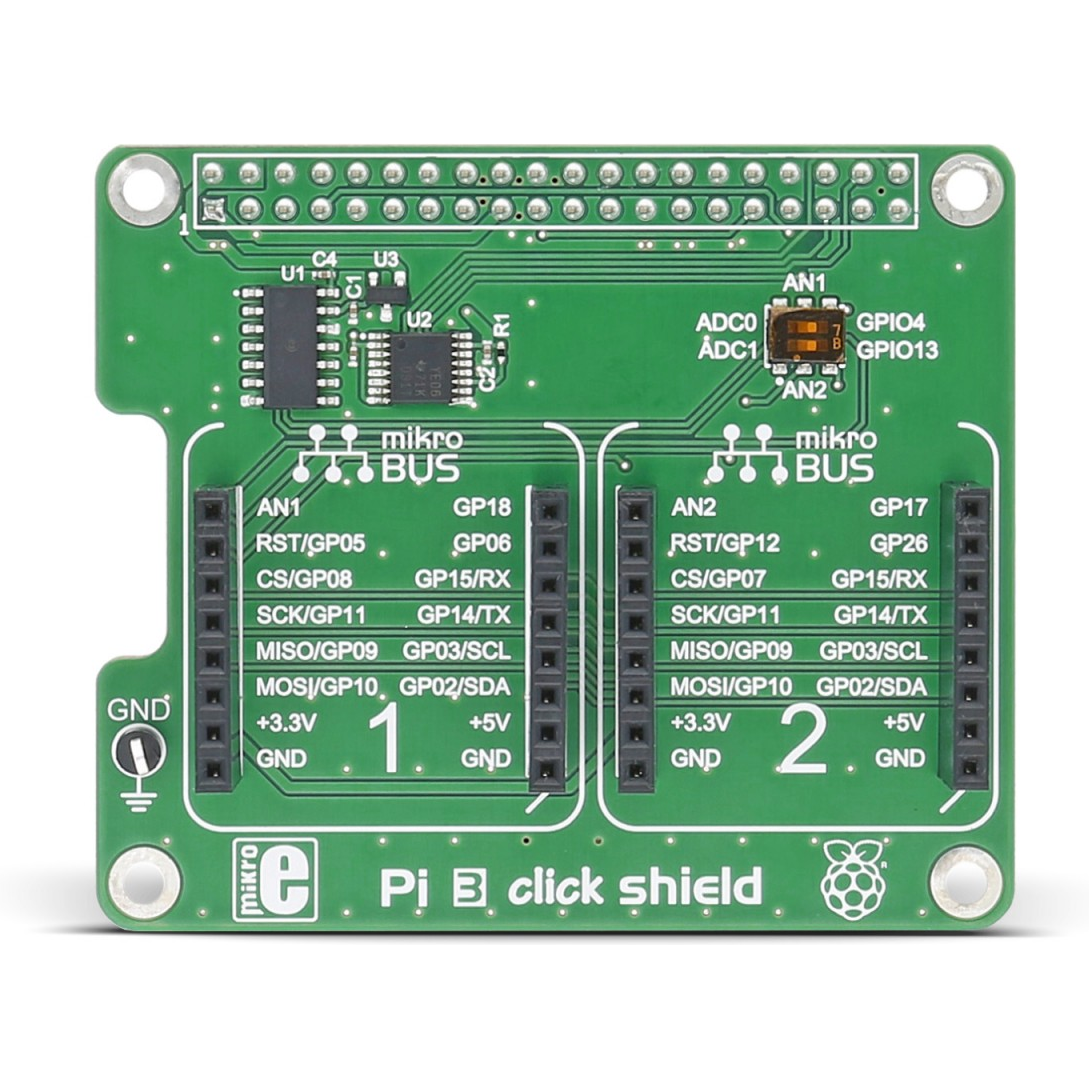

Pi 3 click shield Board
Product Description
By adding two mikroBUS™ sockets to your Raspberry Pi 3, the Pi 3 click shield allows you to experiment with hundreds of click boards™ from our ever expanding range.
WiFi, Lora, Bluetooth, GSM, GPS, RFID, OLED, speech recognition, environmental sensors, movement sensors, biosensors, LEDs, relays, — you name it, we got it!
The Pi 3 click shield is compatible with Raspberry Pi 3 model B, 2 B, 1 A+ and B+.
Specifications:
| Type | Shield |
| Applications | Pi 3 click shield allows you to use click boards on your Raspberry Pi® |
| On-board modules | Two mikroBUS™ sockets, MCP3204 12-bit Analog-to-Digital converter (ADC), 4.096V reference voltage |
| Key Features | GND Oscilloscope probe pin. Four mounting holes. |
| Input Voltage | 3.3V or 5V |
| Compatibility | Raspberry Pi |
| Compliant | |
| EAR99 | |
| Active | |
| 8473.30.11.80 | |
| Automotive | No |
| PPAP | No |
| Click Board | |
| Interface Tools |
| EDA / CAD Models |
