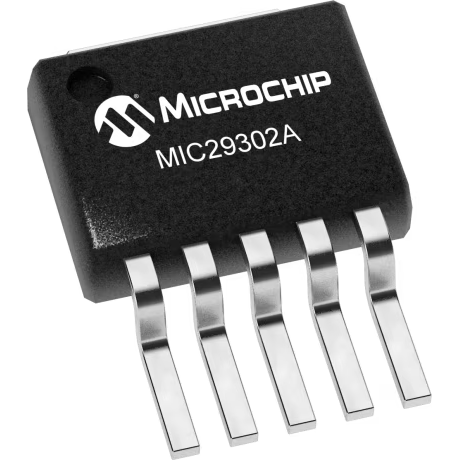

Microchip TechnologyMIC29302AWULinear Regulators
LDO Regulator Pos 1.24V to 15V 3A 6-Pin(5+Tab) TO-263 Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| LDO | |
| 1 | |
| Positive | |
| ±2 | |
| Adjustable | |
| 1.24 to 15 | |
| 3 | |
| 3 | |
| 16 | |
| 0.2@100mA|0.8@3A | |
| 1.267 | |
| 0.5% | |
| 1% | |
| 60 | |
| 28°C/W | |
| 3°C/W | |
| Thermal Shutdown Protection | |
| -40 | |
| 125 | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 4.6(Max) |
| Package Width | 9.17(Max) |
| Package Length | 10.67(Max) |
| PCB changed | 5 |
| Tab | Tab |
| Standard Package Name | TO |
| Supplier Package | TO-263 |
| 6 | |
| Lead Shape | Gull-wing |
