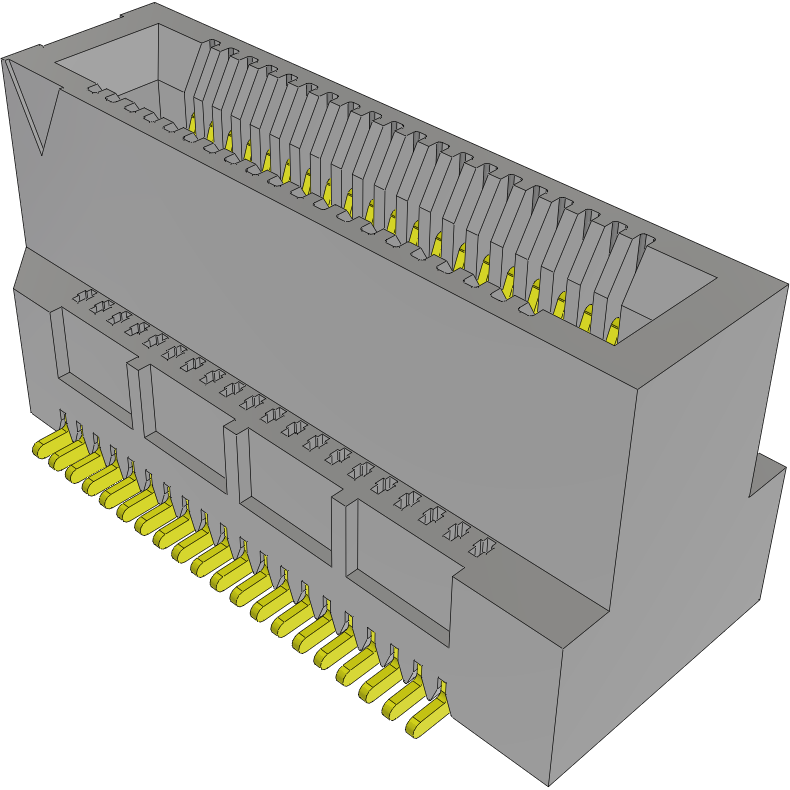

SamtecMEC6-120-02-L-DV-AConnector Card Edge
Conn Card Edge SKT 40 POS 0.635mm Solder ST SMD Tray
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| Card Edge | |
| SKT | |
| Dual Edge | |
| 1.57 | |
| 40 | |
| 2 | |
| Solder | |
| Hairpin Bellows | |
| 0.635 | |
| Straight | |
| Alignment Pin | |
| 2.4/Contact | |
| 185VAC | |
| 5000 | |
| 15 | |
| -55 | |
| 125 | |
| 100 | |
| Tray | |
| 17.47 | |
| 8.8 | |
| 8.85 | |
| Surface Mount |
Samtec's MEC6-120-02-L-DV-A smart card connector is ideal when space for electrical connections is limited. This SKT connector's 40 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a straight body orientation. It has a socket type gender. Its pitch is 0.635 mm. This product is 8.65 mm tall. MEC6-120-02-L-DV-A is housed in black liquid crystal polymer. This card edge connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
