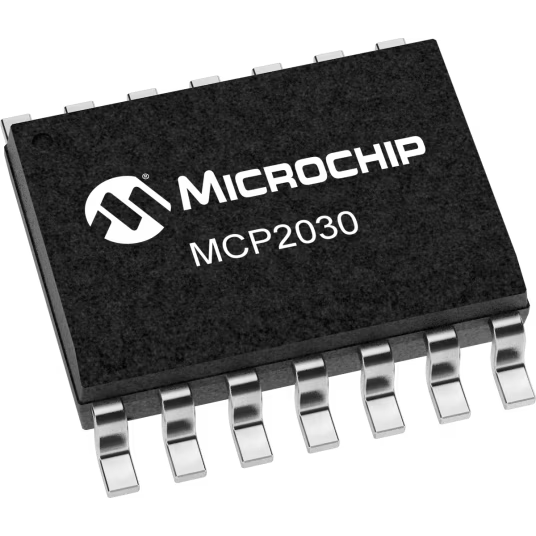

Microchip TechnologyMCP2030-I/SLAnalog Front End - AFE
AFE General Purpose 3V 14-Pin SOIC N Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.30 | |
| Automotive | No |
| PPAP | No |
| General Purpose | |
| General Purpose | |
| 3 | |
| Serial (SPI) | |
| 2 | |
| 3 | |
| 3.6 | |
| Analog | |
| -40 | |
| 85 | |
| Industrial | |
| Tube | |
| Mounting | Surface Mount |
| Package Height | 1.25(Min) |
| Package Width | 3.9 |
| Package Length | 8.65 |
| PCB changed | 14 |
| Standard Package Name | SO |
| Supplier Package | SOIC N |
| 14 | |
| Lead Shape | Gull-wing |
The Microchip Technology's general purpose MCP2030-I/SL analog front end is needed for circuits with sensors to help convert analog input from the sensors to data, which can then be processed by other components. This device's minimum operating supply voltage of 2 V, while its maximum is 3.6 V. This AFE has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This device uses analog power. It has 3 channels per chip.
