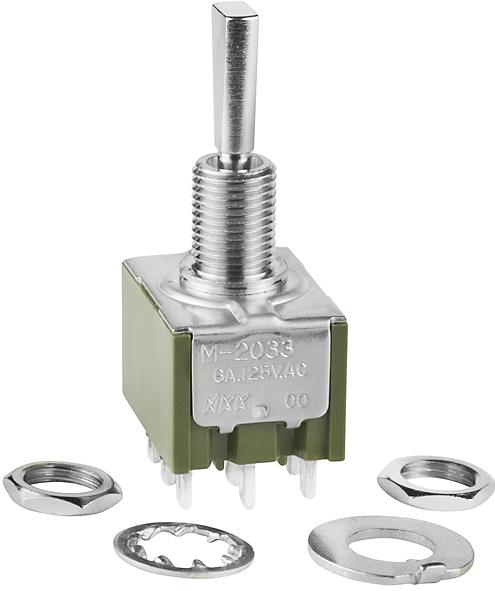

NKK SwitchesM2033ES1W01Switch Toggle
Switch Toggle ON OFF ON 3PDT Small Flat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
| Compliant with Exemption | |
| EAR99 | |
| Obsolete | |
| 8536.50.90.65 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Small Flat Lever | |
| 3PDT | |
| ON OFF ON | |
| Threaded | |
| 6@125VAC | |
| 1000VAC | |
| 1000 | |
| 10 | |
| 25000 | |
| 50000 | |
| Chrome | |
| 11.4 | |
| 3 | |
| 4.8 | |
| Panel Mount with Threads | |
| Solder Lug | |
| 9 | |
| 4.5 | |
| 4.7 | |
| Epoxy | |
| Terminals | |
| Epoxy | |
| Straight | |
| -30 | |
| 85 | |
| Miniature | |
| 1/4-40 | |
| 13 | |
| 8.9 | |
| 17.5 | |
| 11.5 | |
| 13 | |
| 17.5 | |
| 36.3 |
The M2033ES1W01 toggle switch from NKK Switches allows you to control the status of your project. It has a 3PDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2033ES1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 36.3 mm tall and 17.5 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
