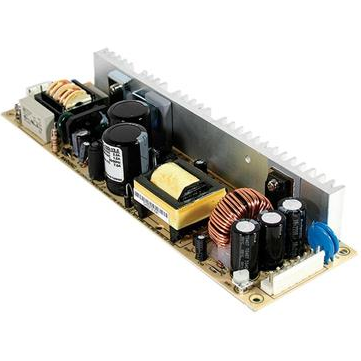

MEAN WELLLPS-100-5AC to DC Power Supplies
AC/DC Power Supply Single-OUT 5V 20A 100W 11-Pin
| Compliant | |
| EAR99 | |
| Active | |
| EA | |
| Automotive | No |
| PPAP | No |
| Regulated | |
| Open Frame | |
| AC/DC | |
| 1 | |
| Fixed | |
| 5 | |
| 20 | |
| 100 | |
| 88 | |
| 264 | |
| 248 | |
| 370 | |
| 3000VAC | |
| 0.5% | |
| 2% | |
| 2.3(Typ) | |
| 47 to 63 | |
| ±3 | |
| 77(Typ) | |
| No | |
| JST RCY Male | |
| JST RCY Male | |
| No | |
| 100mV(Max) | |
| No | |
| -10 | |
| 60 | |
| 450 | |
| Mounting | Screw |
| Package Height | 32 mm |
| Package Width | 62 mm |
| Package Length | 222 mm |
| PCB changed | 11 |
| 11 |
With this LPS-100-5 AC to DC power supply from Mean-Well USA, Inc. your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 5 V and maximum output power of 100 W. This part's single output can handle a current up to 20 A. This part has a minimum operating temperature of -10 °C and a maximum of 60 °C.
