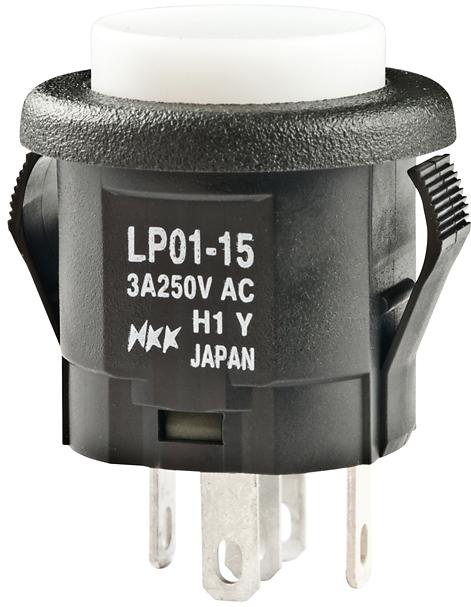

NKK SwitchesLP0115CMKW015DBSwitch Push Button
Switch Push Button ON (ON) SPDT Round Button 3A 250VAC 30VDC Momentary Panel Mount Quick Connect/Solder Lug
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.31 | |
| Automotive | No |
| PPAP | No |
| Momentary | |
| SPDT | |
| Round Button | |
| ON (ON) | |
| Threaded | |
| 3@250VAC 30VDC | |
| 1000VAC | |
| 200 | |
| 50 | |
| 100000 | |
| 500000 | |
| White | |
| 3 | |
| Panel Mount | |
| Quick Connect/Solder Lug | |
| 3 | |
| 7.3 | |
| Amber | |
| Terminals | |
| Epoxy | |
| Diallyl Phthalate | |
| Glass Fiber/Polyamide | |
| Straight | |
| -10 | |
| 50 | |
| M16P1 | |
| 17.1 | |
| 17.1 | |
| 20 | |
| 20 | |
| 26.8 |
Ideal for low current and low voltage circuits, this LP0115CMKW015DB push button switch from NKK Switches will allow you to switch from connected to disconnected state. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a SPDT configuration. This push switch has an operating temperature range of -10 °C to 50 °C. The LP0115CMKW015DB push switch has a quick connect/solder lug termination style. This product is 20 mm long, 26.8 mm tall and 20 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
