| Compliant | |
| EAR99 | |
| Active | |
| 8542.33.00.01 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Variable Gain Amplifier | |
| 1 | |
| 2500 | |
| 4500 | |
| 18.3 | |
| 27@2000MHz | |
| 15(Typ)@2000MHz | |
| 8@1000MHz | |
| ±2.625|5.25 | |
| 4 | |
| 5 | |
| ±2 | |
| ±2.625 | |
| Single|Dual | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Mounting | Surface Mount |
| Package Height | 0.6(Max) |
| Package Width | 3.1(Max) |
| Package Length | 3.1(Max) |
| PCB changed | 16 |
| Standard Package Name | QFN |
| Supplier Package | UQFN |
| 16 | |
| Lead Shape | No Lead |

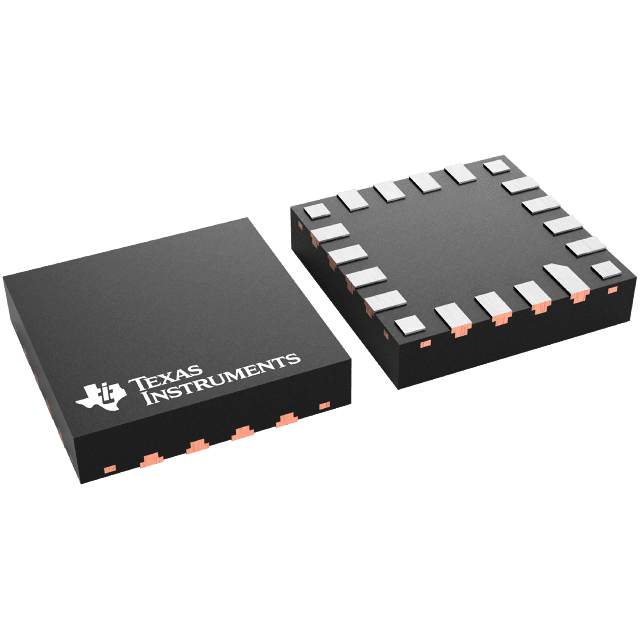

Make sure RF signals are retrievable from your device by implementing this gain amplifier LMH6401IRMZT buffer amplifier from Texas Instruments. This RF amplifier chip has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device uses one or two power supplies. It has a single channel per chip.
