LED Power Supplies

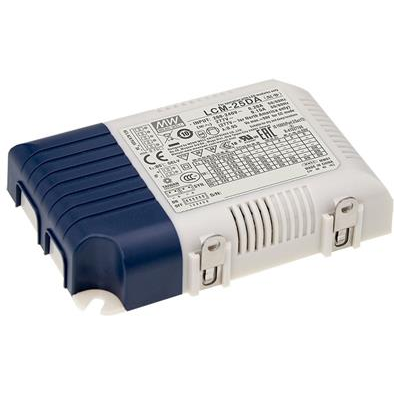

LCM-25DA

AC/DC LED Power Supply 25.2W Hex 9-Pin

MEAN WELL

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8504.40.95.10

• Automotive

  No

• PPAP

  No

• Type

  Constant Current

• Input/Output Type

  AC/DC

• Number of Outputs

  6

• Output Voltage Range (VDC)

  6 to 54|6 to 50|6 to 42|6 to 36|6 to 28|6 to 24

• Maximum Output Current (mA)

  350|500|600|700|900|1050

• Output Power (W)

  25.2

• Input Voltage Range

  180VAC to 277VAC|254VDC to 392VDC

• Dimming

  DALI

• Power Factor Correction

  0.94(Min)

• Efficiency (%)

  86(Typ)

• Termination Style

  Lead Wire

• Warranty

  3Year

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  60

• Product Weight (g)

  170

• Mounting

  Screw

• Package Height

  23 mm

• Package Width

  68 mm

• Package Length

  105 mm

• PCB changed

  9

• Pin Count

  9

• Lead Shape

  Lead Wire
