SwitchcraftL11Connector Audio and Video
Conn 1/4" Phone Jack F 2 POS Solder Lug ST Panel Mount 2 Terminal 1 Port
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.51 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| 1/4" Phone Jack | |
| F | |
| 2 | |
| 2 | |
| 1 | |
| Solder Lug | |
| Straight | |
| 1 | |
| 25VDC | |
| -20 | |
| 65 | |
| 19.05 | |
| 32.41 | |
| Panel Mount | |
| Plastic |

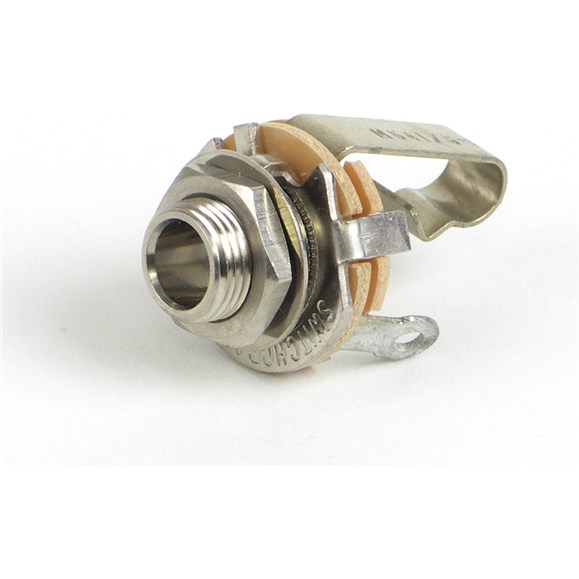

This 1/4\" phone jack L11 audio and video connector from Switchcraft can be adopted in any design which needs a peripheral audio and video device connected to it. This F connector has 2 F contacts. It has a straight body orientation. This connector has a single port. It has a female type gender. It has a maximum voltage rating of 25 VDC. L11 is housed in plastic. This device has a maximum current rating of 1 A. This product is 19.05 mm long and 32.41 mm. Its 2 terminals use the solder lug termination method. This part has an operating temperature range of -20 °C to 65 °C.
