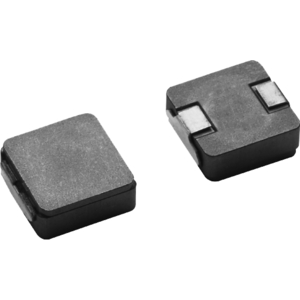

VishayIHLP4040DZERR78M11Inductor Surface Mount
Power Choke Shielded Wirewound 0.78uH 20% 100KHz Powdered Iron 27A 0.0019Ohm DCR 4040 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| Powdered Iron | |
| 0.78u | |
| 20 | |
| 20% | |
| 100K | |
| 27(Typ) | |
| 22(Typ) | |
| 0.0019 | |
| 2 | |
| 4040 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 11.1 | |
| Surface Mount | |
| 10.29 | |
| 4 |
This power IHLP4040DZERR78M11 surface mount inductor from Vishay is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device utilizes wirewound technology. Its test frequency is 100K Hz. It has a tolerance of 20%. It has an inductance of 780n H. This product is 11.1 mm long, 4 mm tall and 10.3 mm deep. This SMD inductor has a maximum DC current of 27(Typ) A with a maximum resistance of 1.9m Ohm.
