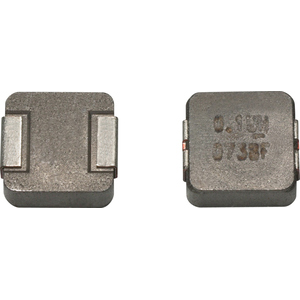

VishayIHLP2020ABER1R0M01Inductor Surface Mount
Power Choke Shielded Wirewound 1uH 20% 100KHz Powdered Iron 4.4A 0.0465Ohm DCR 2020 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| Powdered Iron | |
| 1u | |
| 20% | |
| 100K | |
| 4.4(Typ) | |
| 10.2(Typ) | |
| 0.0465 | |
| 64M(Typ) | |
| 2 | |
| 2020 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 5.74 | |
| Surface Mount | |
| 5.43 | |
| 1.2 |
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power IHLP2020ABER1R0M01 surface mount inductor from Vishay is perfect for you! This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. This device is made with wirewound technology. This product is 5.74 mm long, 1.2 mm tall and 5.43 mm deep. It has an inductance of 1u H. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 64M(Typ) Hz. This SMD inductor has a maximum DC current of 4.4(Typ) A with a maximum resistance of 46.5m Ohm.
