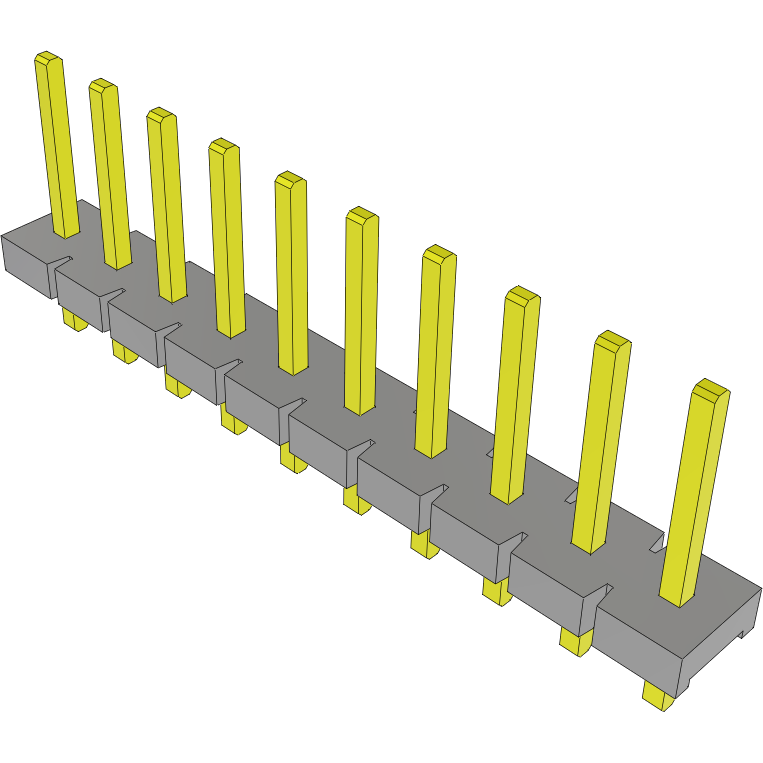

SamtecHPM-10-01-T-SConnector Headers and PCB Receptacles

Use this unshrouded HPM-10-01-T-S header connector from Samtec where IDC ribbon cables are used. This HDR connector's 10 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 5.08 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 16.6 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. HPM-10-01-T-S is housed in polyester. This product is 50.8 mm long, 14.48 mm tall and 6.35 mm deep. This connector has an operating temperature of -55 to 105 °C.
