| Compliant | |
| EAR99 | |
| Active | |
| 8504.40.95.20 | |
| Automotive | No |
| PPAP | No |
| Constant Current|Constant Voltage | |
| AC/DC | |
| 1 | |
| 21.6 to 36 | |
| 2300 | |
| 82.8 | |
| 90VAC to 305VAC|127VDC to 431VDC | |
| 1-10V/PWM/Resistor | |
| 0.96(Min) | |
| 91(Typ) | |
| Lead Wire | |
| IP67 | |
| 7Year | |
| -40 | |
| 80 | |
| 840 | |
| Mounting | Screw |
| Package Height | 38.8 |
| Package Width | 61.5 |
| Package Length | 195.6 |
| PCB changed | 7 |
| 7 | |
| Lead Shape | Lead Wire |

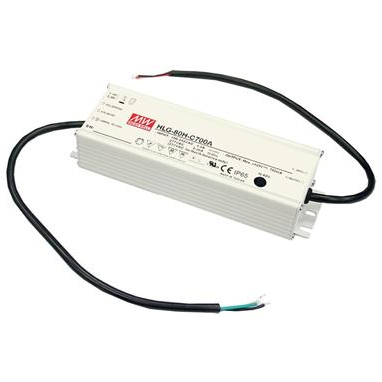

With this HLG-80H-36B AC to DC power supply from Mean-Well USA, Inc. your electronic device will be able to operate by using direct current instead of alternating current. It has a voltage of 36 V and maximum output power of 82.8 W. This part's single output can handle a current up to 2.3 A. This part has a temperature range of -40 °C to 70 °C.
