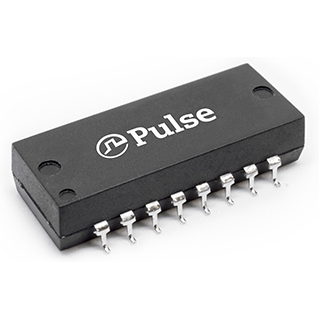

Pulse ElectronicsH1012NLTelecom Transformers
Telecom Transformer 1:1 16 Terminal Gull Wing SMD
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| 10/100Base-T Single Port Transformer | |
| 1:1 | |
| 1500Vrms | |
| -40(Typ)@100MHz | |
| -33@100MHz | |
| -14@60MHz to 80MHz | |
| -1@0.1MHz to 100MHz | |
| Gull Wing | |
| Surface Mount | |
| 16 | |
| 0 | |
| 70 | |
| Tube | |
| 25.4 | |
| 12.83 | |
| 6.22 |
Never worry about slow telecommunication speeds again with this H1012NL telecom transformer from Pulse. This telecom transformer has an operating temperature range of 0 °C to 70 °C. It has 16 terminals. This device comes in tube packaging. It has a turn ratio of 1:1. This product is 25.4 mm long, 6.22 mm tall and 12.83 mm deep. It also has a 10/100base-t single port transformer.
