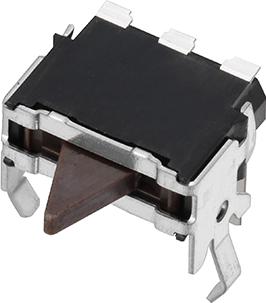

Panasonic IndustryESE-24SH1Switch Detector
Switch Detector N.O. SPDT Lever PC Pins 0.01A 5VDC Thru-Hole Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| Lever | |
| N.O. | |
| SPDT | |
| 0.01@5VDC | |
| 5 | |
| 100VAC | |
| 100 | |
| 500 | |
| 50000 | |
| 0.35 | |
| Through Hole | |
| PC Pins | |
| 3 | |
| Right Angle | |
| 2.6 | |
| -40 | |
| 85 | |
| Bulk | |
| 2.95 | |
| 7.5 | |
| 5.6 | |
| 4.65 | |
| 7.5 | |
| 8.55 | |
| 4.65 |
Use this ESE-24SH1 switch detector from Panasonic to sense changes in your environment. This device has a maximum current rating of 0.01 A @ 5VDC. It has a SPDT configuration. This lever actuator is 2.95 mm long. This switch detector has a minimum operating temperature of -10 °C and a maximum of 70 °C. It has 3 terminals. The ESE-24SH1 switch detector has a PC pin termination style. The maximum DC voltage rating is 5 VDC. This product is 7.5 mm long, 4.65 mm tall and 8.55 mm deep.
