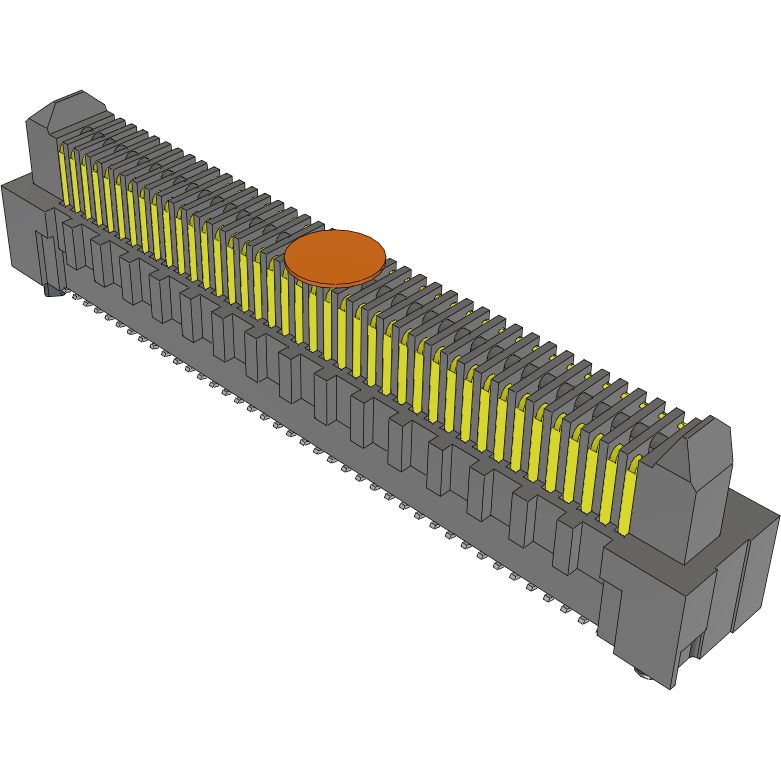

SamtecERM8-040-05.0-S-DV-K-TRConnector Headers and PCB Receptacles

As an added safety precaution, the micro high speed terminal strip ERM8-040-05.0-S-DV-K-TR header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector's 80 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.8 mm. It has a maximum voltage rating of 200 VAC. It has a header type gender. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 2.2 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It uses the solder termination method. ERM8-040-05.0-S-DV-K-TR is housed in black liquid crystal polymer. This product is 38 mm long, 8.91 mm tall and 5.6 mm deep. This connector has an operating temperature of -55 to 125 °C.
