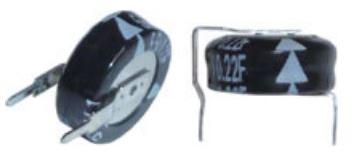

Panasonic IndustryEEC-S0HD334VCapacitor Electric Double Layer- Supercaps
Cap Supercap 0.33F 5.5V -20% to 80% ( 10.5 X 5.5mm ) Radial Stacked Coin 5mm 0.075 Ohm 1000h 70°C Bulk
| Compliant | |
| EAR99 | |
| Obsolete | |
| 8532.10.00.00 | |
| Automotive | No |
| PPAP | No |
| 0.33F | |
| -20% to 80% | |
| 5.5VDC | |
| 0.075 | |
| 1000 | |
| Polar | |
| -25 | |
| 70 | |
| Stacked Coin | |
| Radial | |
| 2 | |
| Bulk | |
| 10.5 X 5.5 | |
| 10.5(Max) | |
| 5.5(Max) | |
| 0.8 | |
| 11.5(Max) | |
| Through Hole | |
| 5 |
Rechargeable batteries are not resistant to more frequent charge and discharge cycles. Panasonic's high-capacity EEC-S0HD334V ultracapacitors are able to tolerate these frequent energy changes. It can withstand a voltage of 5.5 VDC. This part has a pitch of 5 mm. This super capacitor has a maximum operating temperature of 70 °C. This product comes packaged in bulk, so the parts will be stored loosely. Its capacitance value is 0.33F. The EEC-S0HD334V super capacitor has a radial termination style. This product is 11.5(Max) mm tall and 5.5(Max) mm deep with a diameter of 10.5(Max) mm.
